Module: DataLog Manager

The DataLog Manager manages the data logging of variables. It can be added to the module tree below the upper most object . This is done by the Add Toplevel Instance command and the selection of the DataLogManager module. Only one DataLog Manager per application can be added.

Dialog: Data Logging

In this dialog one or more groups can be excluded from storage. By default the DataLogManager group is created.

Add

Adding and removing of groups which are excluded from storage.

Remove

Dialog: HMI

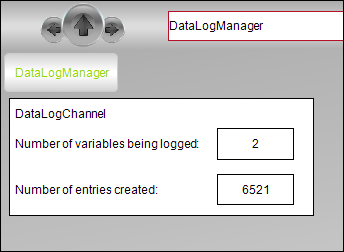

The DataLog Manager provides a visualization template (VISU_DataLogManager) which can be added to the visualization. For more information, see: HMI

In online mode this page provides statistic information about the reading and writing of variables.
