DataLog Manager

The DataLog Manager is a standard component of the Application Composer. It serves for cyclic storage of variable values into a file. These variables are flagged with special attributes in the variable declaration.

Tip

To make the module available you have to add the AC_DataLog library to the library manager.

Only one DataLog Manager per application can be added to the module tree.

The DataLog Manager is a toplevel module and can be added to the module tree by use of the Add toplevel module instance command.

Below the DataLog Managers you can insert up to 64 channels. In the channels you can define groups and configure their storage behavior by parameters. Each channel must get a submodule DataLog storage.

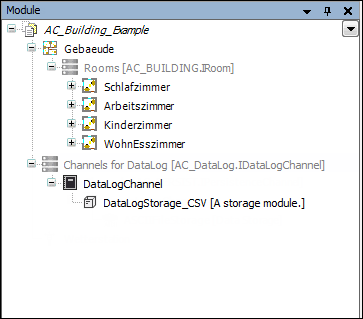

Figure 32. Add DataLog Manager to the module tree
Add DataLog Manager to the module tree


If the module tree or parameter of module instances have been changed a generator run must be executed. (Command: Generate). For this purpose the DataLog Generator in the Generator Configuration must be activated.
