SF_MutingPar

Tip

The version of the function block as described here corresponds to the latest version of the function block in Version list of function blocks.

Applicable safety standards

SF_MutingPar is a certified PLCopen function block. For detailed information about applied standards, see "PLCopen – Technical Committee 5 – Safety Software".

Important

The requirements listed in the standards must be fulfilled by the user.

Important

This block deviates from the PLCopen specification (see: status diagram).

Interface description

Muting is the deliberate suppression of the safety function. Parallel muting with four muting sensors is specified in this block.

Table 59. VAR_INPUT

Name	Data Type	Initial Value	Description, parameter values
`Activate`	`BOOL`	`FALSE`	General input parameters
`S_AOPD_In`	`SAFEBOOL`	`FALSE`	Variable Output switching signal `(OSSD)` of the active opto-protection device `(AOPD`) `FALSE`: Protection field interrupted. `TRUE`: Protection field not interrupted.
`MutingSwitch11`	`BOOL`	`FALSE`	Variable Status of muting sensor 11. `FALSE`: Mutingsensor11 not actuated. `TRUE`: Workpiece actuates Mutingsensor11. Note: Depending on the safety requirements, `SAFEBOOL` must be connected instead of `BOOL`.
`MutingSwitch12`	`BOOL`	`FALSE`	Variable. Status of muting sensor 12. `FALSE`: Mutingsensor12 not actuated. `TRUE`: Workpiece actuates MutingSwitch12 Note: Depending on the safety requirements, `SAFEBOOL` must be connected instead of `BOOL`.
`MutingSwitch21`	`BOOL`	`FALSE`	Variable. Status of muting sensor 21. `FALSE`: Mutingsensor21 not actuated. `TRUE`: Workpiece actuates Mutingsensor21. Note: Depending on the safety requirements, `SAFEBOOL` must be connected instead of `BOOL`.
`MutingSwitch22`	`BOOL`	`FALSE`	Variable Status of muting sensor 22. `FALSE`: Mutingsensor22 not actuated. `TRUE`: Workpiece actuates Mutingsensor22 Note: Depending on the safety requirements, `SAFEBOOL` must be connected instead of `BOOL`.
`S_MutingLamp`	`SAFEBOOL`	`FALSE`	Variable or constant Shows the state of the muting lamp. `FALSE`: Muting lamp faulty `TRUE`: Muting lamp not faulty.
`DiscTime11_12`	`TIME`	`T#0s`	Constant `0 .. 4 s` Maximum discrepancy time for `MutingSwitch11` and `MutingSwitch12` The "DiscTime11_12, DiscTime21_22, and MaxMutingTime" caution note must be observed.
`DiscTime21_22`	`TIME`	`T#0s`	Constant `0 .. 4 s` Maximum discrepancy time for `MutingSwitch21` and `MutingSwitch22` The "DiscTime11_12, DiscTime21_22, and MaxMutingTime" caution note must be observed.
`MaxMutingTime`	`TIME`	`T#0s`	Constant `0 .. 10 min` Maximum time for complete muting sequence, timer is started when the first muting sensor is actuated. The "DiscTime11_12, DiscTime21_22, and MaxMutingTime" caution note must be observed.
`MutingEnable`	`BOOL`	`FALSE`	Variable or constant. Command of the control system which activates the start of the muting function when required by the machine cycle. After starting the muting function, this signal can be switched off. `FALSE`: Muting active `TRUE`: Start of the muting function activated.
`S_StartReset`	`SAFEBOOL`	`FALSE`	General input parameters
`Reset`	`BOOL`	`FALSE`	General input parameters

DiscTime11_12, DiscTime21_22, and MaxMutingTime

Attention for developers in Extended Level: The DiscTime11_12, DiscTime21_22, and MaxMutingTime inputs have to be set to constant values. This means that these values must not be changed for the calls.

Table 60. VAR_OUTPUT

Name	Data Type	Initial Value	Description, parameter values
`Ready`	`SAFEBOOL`	`FALSE`	General output parameters
`S_AOPD_Out`	`SAFEBOOL`	`FALSE`	Safety-oriented output, indicates the status of the non-isolating guard of the muting application. `FALSE`: `AOPD` protection field is interrupted and muting is not active. `TRUE`: `OPD` protection field is not interrupted or muting is active.
`S_MutingActive`	`SAFEBOOL`	`FALSE`	Displays the status of the muting process. `FALSE`: Muting not active `TRUE`: Muting active
`Error`	`BOOL`	`FALSE`	General output parameters
`DiagCode`	`WORD`	`16#0000`	Diagnostic codes

Important

A short circuit in the muting sensor signals, or a functional application error in supporting these signals, is not detected by this function block, but is interpreted as an incorrect muting sequence. (Data type BOOL (not safe), supplied by the functional user hardware or software.) Nevertheless, this should not lead to unwanted muting. Users should consider this in their respective risk analyses.

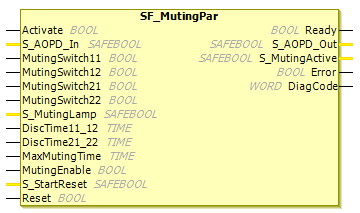

Figure 88. Function block: SF_MutingPar

Functional description

Muting is the deliberate suppression of a safety function. This is necessary, for example, when material is to be transported into the hazardous area without causing the machine to stop. Muting is triggered by a muting sensor. The use of two or four muting sensors and the correct integration into the production process has to ensure that no person enters the hazardous area while the light grid is muted. Muting sensors can be proximity switches, photoelectronic barriers, limit switches, etc. which do not have to be fail-safe. Active muting mode has to be indicated by indicator lamps.

There are sequential and parallel muting methods. Parallel muting with four muting sensors is used in this block. An execution of the forward direction of transport is listed below. The FB can be used in both directions: forward and backward. Muting should be activated by the MutingEnable signal from the process to prevent tampering.

The input parameters of the function block contains the signals of the 4 muting sensors (MutingSwitch11, MutingSwitch12, MutingSwitch21, and MutingSwitch22), the OSSD signal of the "active opto-electronic protective device" S_AOPD_In, as well as 3 parameterizable times (DiscTime11_12, DiscTime21_22, and MaxmutingTime).

Caution

The S_StartReset input shall only be activated if it is ensured that no hazardous situation can occur when the S-PLC is started.

Table 61. Example of SF_MutingPar in forward direction with four sensors

No.	Image	Explanation

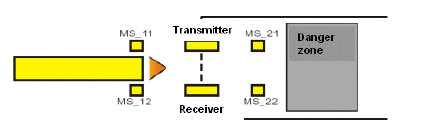

1		If the muting sensors `MutingSwitch11` (`MS_11`) and `MutingSwitch12` (`MS_12`) are actuated by a workpiece within the time `DiscTime11_12`, then the muting mode is activated (`S_MutingActive = TRUE`).

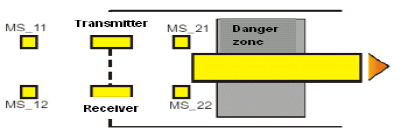

2		Muting mode remains active as long as `MutingSwitch11` `(MS_11`) and `MutingSwitch12` `(MS_12`) are actuated by the workpiece. The workpiece can pass through the light grid without causing a machine stop.

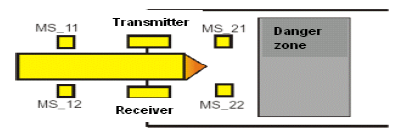

3		Before the muting sensors `MutingSwitch11` (`MS_11`) and `MutingSwitch12` (`MS_12`) are deactivated, `MutingSwitch21` (`MS_21`) and `MutingSwitch22` (`MS_22`) have to be activated. This ensures that the muting mode remains active. The discrepancy time between the switching of `MutingSwitch21` and `MutingSwitch22` is monitored by the time `DiscTime21_22`.

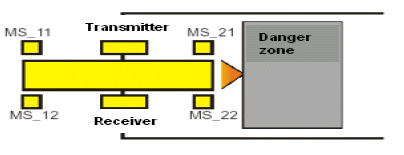

4		Muting mode is ended when either `MutingSwitch21` (`MS_21`) or `MutingSwitch22` (`MS_22`) is deactivated by the workpiece. `MaxMutingTime` is the maximum time that the muting mode may remain active.

Status diagram

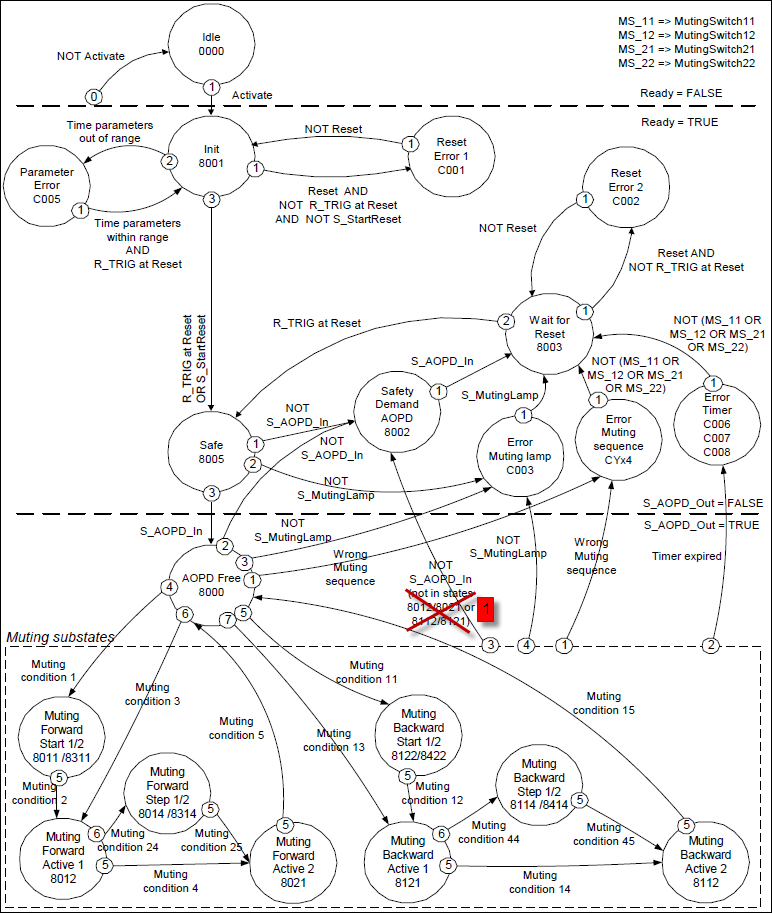

Figure 89. sil3_status_SF_MutingPar

Important

NOT S_AOPD_In only in states 8011/80311 or 8122/8422

This represents a deviation from the PLCopen specification.

Tip

Note: The transition from any state to the Idle state, initiated by Activate = FALSE, is not shown. In every case, these transitions have the highest priority.

Typical timing diagram

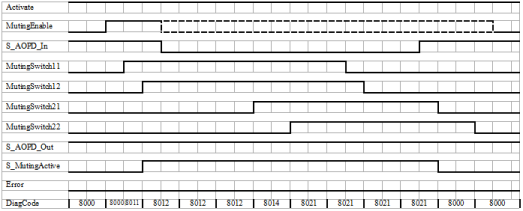

Figure 90. sil3_time_SF_MutingPar.png

Muting conditions

. Forward direction

Muting condition 1 (to status 16#8011) (MS_11 is the first actuated input sensor) Start timer DiscTimeEntry and MaxMutingTime:
MutingEnable AND (R_TRIG at MS_11 AND NOT MS_12 AND NOT MS_21 AND NOT MS_22)
Muting condition 1 (to status 16#8311) (MS_12 is the first actuated input sensor) Start of timers MaxMutingTime and DiscTime11_12:
MutingEnable AND (NOT MS_11 AND R_TRIG at MS_12 AND NOT MS_22)
Muting condition 2 (from status 16#8011) (MS_12 is the second damped input sensor). Stop timer: DiscTime11_12:
MutingEnable AND (MS_11 AND R_TRIG at MS_12 AND NOT MS_21 AND NOT MS_22)
Muting condition 2 (from status 16#8311) (MS_11 is the second damped input sensor). Stop timer: DiscTime11_12:
MutingEnable AND(R_TRIG at MS_11 AND MS_12 AND NOT MS_21 And NOT MS_22;
Muting condition 3 (both input sensors actuated in the same cycle). Start of timer Timer MaxMutingTime:
MutingEnable AND (R_TRIG at MS_11 AND R_TRIG at MS_12 AND NOT MS_21 AND NOT MS_22)
Muting condition 4 (all sensors actuated): MS_11 AND MS_12 AND MS_21 AND MS_22
Muting condition 24 (to 16#8014) (MS_21 is the first actuated output sensor) Start timer DiscTime21_22:
MS_11 AND MS_12 AND R_TRIG at MS_21 AND NOT MS_22
Muting condition 24 (to 16#8314) (MS_22 is the first actuated output sensor). Start timer: DiscTime21_22:
MS_11 AND MS_12 AND NOT MS_21 AND R_TRIG at MS_22
Muting condition 25 (from 16#8014) (MS_22 is the second actuated output sensor). Stop timer: DiscTime21_22:
MS_11 AND MS_12 AND MS_21 AND R_TRIG at MS_22
Muting condition 25 (from 16#8314) (MS_21 is the second actuated output sensor). Stop timer: DiscTime21_22:
MS_11 AND MS_12 AND R_TRIG at MS_21 AND MS_22
Muting condition 5 (one of the output sensors actuated). Stop timer: MaxMutingTime:
NOT MS_11 AND NOT MS_12 AND (F_TRIG at MS_21 OR F_TRIG at MS_22)

. Backward direction

Muting condition 11 (to 16#8122) (MS_21 is the first actuated sensor). Start of timers MaxMutingTime and DiscTime21_22:
MutingEnable AND (NOT MS_22 AND R_TRIG at MS_21 AND NOT MS_11 AND NOT MS_12)
Muting condition 11 (to 16#8422) (MS_22 is the first actuated input sensor). Start of timers MaxMutingTime and DiscTime21_22:
MutingEnable AND (R_TRIG at MS_22 AND NOT MS_21 AND NOT MS_11 AND NOT MS_12)
Muting condition 12 (from 16#8122) (MS_22 is the second actuated input sensor). Stop timer: DiscTime21_22:
MutingEnable AND (MS_21 AND R_TRIG at MS_22 AND NOT MS_11 AND NOT MS_12)
Muting condition 12 (from 16#8422) (MS_21 is the second actuated input sensor). Stop timer: DiscTime21_22:
MutingEnable AND (R_TRIG at MS_21 AND MS_22 AND NOT MS_11 AND NOT MS_12)
Muting condition 13 (both input sensors actuated in the same cycle). Start timer: MaxMutingTime:
MutingEnable AND (R_TRIG at MS_21 AND R_TRIG at MS_22 AND NOT MS_11 AND NOT MS_12)
Muting condition 14 (all sensors actuated):
MS_11 AND MS_12 AND MS_21 AND MS_22
Muting condition 44 (to 16#8114) (MS_11 is the first actuated output sensor). Start timer: DiscTime11_12:
MS_21 AND MS_22 AND R_TRIG at MS_11 AND NOT MS_12
Muting condition 44 (to 16#8414) (MS_12 is the first actuated output sensor). Start timer: DiscTime11_12:
MS_21 AND MS_22 AND NOT MS_11 AND R_TRIG at MS_12
Muting condition 45 (from 16#8114) (MS_12 is the second actuated output sensor). Stop timer: DiscTime11_12:
MS_21 AND MS_22 AND MS_11 AND R_TRIG at MS_12
Muting condition 45 (from 16#8414) (MS_11 is the second actuated output sensor). Stop timer: DiscTime11_12: MS_21 AND MS_22 AND R_TRIG at MS_11 AND MS_12
Muting condition 15 (one of the two output sensors actuated) Stop timer MaxMutingTime:
NOT MS_21 AND NOT MS_22 AND (F_TRIG at MS_11 OR F_TRIG at MS_12)

. Incorrect muting sequences:

State 16#8000:
(MutingEnable = FALSE when muting sequence starts) OR
((MS_11 OR MS_12) AND (MS_21 OR MS_22))OR
(R_TRIG at MS_11 AND MS_12 AND NOT R_TRIG at MS_12) OR
(R_TRIG at MS_12 AND MS_11 AND NOT R_TRIG at MS_11) OR
(R_TRIG at MS_21 AND MS_22 AND NOT R_TRIG at MS_22) OR
(R_TRIG at MS_22 AND MS_21 AND NOT R_TRIG at MS_21) OR
((MS_11 AND NOT R_TRIG at MS_11) AND (MS_12 AND NOT R_TRIG at MS_12)) OR
((MS_21 AND NOT R_TRIG at MS_21) AND (MS_22 AND NOT R_TRIG at MS_22))
Status 16#8011: NOT MutingEnable OR NOT MS_11 OR MS_21 OR MS_22
Status 16#8311: NOT MutingEnable OR NOT MS_12 OR MS_21 OR MS_22
Status 16#8012: NOT MS_11 OR NOT MS_12
Status 16#8021: R_TRIG at MS_11 OR R_TRIG at MS_12 OR R_TRIG at MS_21 OR R_TRIG at MS_22
Status 16#8014: NOT MS_11 OR NOT MS_12 OR NOT MS_21
Status 16#8314: NOT MS_11 OR NOT MS_12 OR NOT MS_22
Status 16#8122: NOT MutingEnable OR MS_11 OR MS_12 OR NOT MS_21
Status 16#8422: NOT MutingEnable OR MS_11 OR MS_12 OR NOT MS_22
Status 16#8121: NOT MS_21 OR NOT MS_22
Status 16#8112: R_TRIG at MS_11 OR R_TRIG at MS_12 OR R_TRIG at MS_21 OR R_TRIG at MS_22
Status 16#8114: NOT MS_21 OR NOT MS_22 OR NOT MS_11
Status 16#8414: NOT MS_21 OR NOT MS_22 OR NOT MS_12

Error detection

. The FB detects the following error conditions:

DiscTime11_23 and DiscTime21_22 were set to values less than T#0s or greater than T#4s.
MaxMutingTime was set to a value less than T#0s or greater than T#10min.
The discrepancy time for the sensor pairs MutingSwitch11/MutingSwitch12 or MutingSwitch21/MutingSwitch22 has been exceeded.
The muting function (S_MutingActive = TRUE) exceeds the maximum muting time MaxMutingTime.
The muting sensors MutingSwitch11, MutingSwitch12, MutingSwitch21 and MutingSwitch22 were activated in the wrong order.
The muting sequence starts without activation by MutingEnable.
A faulty muting lamp is indicated by S_MutingLamp = FALSE.
A static reset condition is detected in status 8001 and 8003.

Error behavior

In case of an error event, the outputs S_AOPD_Out and S_MutingActive are set to FALSE. The DiagCode output displays the relevant error code and the Error output is set to TRUE.

A restart is prevented until the error conditions are clarified and the safe state is confirmed with Reset by the operator.

FB-Specific Error and Status Codes

Table 62. FB-specific error codes

`DiagCode`	Statue Name	Status description and output setting
`16#C001`	`Reset Error 1`	Static reset condition detected after block activation in status `16#8001` `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = TRUE`
`16#C002`	`Reset Error 2`	Static reset condition detected in status `16#8003` `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = TRUE`
`16#C003`	`Error Muting Lamp`	Error detected with muting lamp `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = TRUE`
`16#CYx4`	`Error Muting sequence`	Error detected in muting sequence in status `16#8000`, `16#8011`,16#`8311`,`16#8012`, `16#8021`,`16#8014`,`16#8314`, `16#8122`, `16#8422`,`16#8121`, `16#8112`,`16#8114`, or `16#8414` . `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = TRUE` Y = status in the sequence (6 statuses for forward direction and 6 statuses for backward direction). `16#C0x4` = Error occurs in `Status16# 8000` `16#C1x4` = Error occurs in forward status `8011` `16#C2x4` = Error occurs in forward status `8311` `16#C3x4` = Error occurs in forward status `8012` `16#C4x4` = Error occurs in forward status `8014` `16#C5x4` = Error occurs in forward status `8314` `16#C6x4` = Error occurs in forward status `8021` `16#C7x4` = Error occurs in backward status `8122` `16#C8x4` = Error occurs in backward status `8422` `16#C9x4` = Error occurs in backward status `8121` `16#CAx4` = Error occurs in backward status `8114` `16#CBx4` = Error occurs in backward status `8414` `16#CCx4` = Error occurs in backward status `8112` `16#CFx4` = Muting Enable missing x = status of the sensor when an error occurs (4 bits: `LSB = MS_11`; `MS_12`; `MS_21`; `MSB = MS_22`).
`16#C005`	`Parameter Error`	`DiscTime11_12`, `DiscTime21_22`, or `MaxMutingTime` value out of range. `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = TRUE`
`16#C006`	`Error Timer MaxMuting`	Timing error: Active muting time (if `S_MutingActive = TRUE`) exceeds MaxMutingTime. `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = TRUE`
`16#C007`	`Error Timer MS11_12`	Timing error: Discrepancy time for switching `MutingSwitch11` and `MutingSwitch12` is greater than `DiscTime11_12` `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = TRUE`
`16#C008`	`Error Timer MS21_22`	Timing error: Discrepancy time for switching `MutingSwitch21` and `MutingSwitch22` is greater than `DiscTime21_22` `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = TRUE`

Table 63. FB-specific status codes

`DiagCode`	Statue Name	Status description and output setting
`16#0000`	`Idle`	The function block is not active (basic state). `Ready = FALSE` `S_AOPD_Out =FALSE` `S_MutingActive = FALSE` `Error = FALSE`
`16#8000`	`AOPD Free`	Muting not active and no safety requirement from `AOPD`. If the timers of the following muting are still running, then they will be stopped. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = FALSE` `Error = FALSE`
`16#8001`	`Init`	The block has been activated. `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = FALSE`
`16#8002`	`Safety Demand AOPD`	Safety request detected by `AOPD`, muting not active. `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = FALSE`
`16#8003`	`Wait for Reset`	Safety requirement or error was discovered and is now cleared. Operator confirmation with reset requested. `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = FALSE`
`16#8005`	`Safe`	Safety function activated `Ready = TRUE` `S_AOPD_Out = FALSE` `S_MutingActive = FALSE` `Error = FALSE`
`16#8011`	`Muting Forward Start 1`	Muting forward sequence is in start phase after rising trigger edge of `MutingSwitch11`. Monitoring of `DiscTime11_12` is activated. Monitoring of `MaxMutingTime` is activated. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = FALSE` `Error = FALSE`
`16#8311`	`Muting Forward Start 2`	Muting forward sequence is in start phase after rising trigger edge of `MutingSwitch12`. Monitoring of `DiscTime11_12` is activated. Monitoring of `MaxMutingTime` is activated. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = FALSE` `Error = FALSE`
`16#8012`	`Muting Forward Active 1`	Muting forward sequence is active, either: After detection of a rising trigger edge of the second input `MutingSwitch12` or `11` or If both `MutingSwitch11` and `12` were actuated in the same cycle. Monitoring of `DiscTime11_12` is stopped. Monitoring is activated if the transition came directly from status `16#8000`. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = TRUE` `Error = FALSE`
`16#8014`	`Muting Forward Step 1`	Muting forward sequence is active. `MutingSwitch21` is the first actuated output sensor. Monitoring of `DiscTime21_22` started. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = TRUE` `Error = FALSE`
`16#8314`	`Muting Forward Step 2`	Muting forward sequence is active. `MutingSwitch22` is the first actuated output sensor. Monitoring of `DiscTime21_22` started. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = TRUE` `Error = FALSE`
`16#8021`	`Muting Forward Active 2`	Muting forward sequence is still active. Both `MutingSwitch21` and `22` are actuated, monitoring of `DiscTime21_22` is stopped. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = TRUE` `Error = FALSE`
`16#8122`	`Muting Backward Start 1`	Muting backward sequence is in start phase after rising trigger edge of `MutingSwitch21`. Monitoring of `DiscTime21_22` is activated. Monitoring of `MaxMutingTime` is activated. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = FALSE` `Error = FALSE`
`16#8422`	`Muting Backward Start 2`	Muting backward sequence is in start phase after rising trigger edge of `MutingSwitch22`. Monitoring of `DiscTime21_22` is activated. Monitoring of `MaxMutingTime` is activated. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = FALSE` `Error = FALSE`
`16#8121`	`MutingBackward Active 1`	Muting backward sequence is active, either: After detection of a rising trigger edge of the second input `MutingSwitch21` or `22` or If both `MutingSwitch21` and `22` were actuated in the same cycle. Monitoring of `DiscTime21_22` stopped. Monitoring of `MaxMutingTime` is activated if the transition came directly from status `8000`. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = TRUE` `Error = FALSE`
`16#8114`	`Muting Backward Step 1`	Muting backward sequence is active. `MutingSwitch11` is the first actuated output sensor. Monitoring of `DiscTime11_12` started. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = TRUE` `Error = FALSE`
`16#8414`	`Muting Backward Step 2`	Muting backward sequence is active. `MutingSwitch12` is the first actuated output sensor. Monitoring of `DiscTime11_12` started. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = TRUE` `Error = FALSE`
`16#8112`	`Muting Backward Active 2`	Muting backward sequence is still active. Both `MutingSwitch11` and `12` output sensors are actuated, monitoring of `DiscTime11_12` is stopped. `Ready = TRUE` `S_AOPD_Out = TRUE` `S_MutingActive = TRUE` `Error = FALSE`
