CODESYS TargetVisu for Linux SL

Use cases

CODESYS TargetVisu for Linux SL is a separate small runtime system which manages the display of a visualization. CODESYS TargetVisu for Linux SL covers the following use cases:

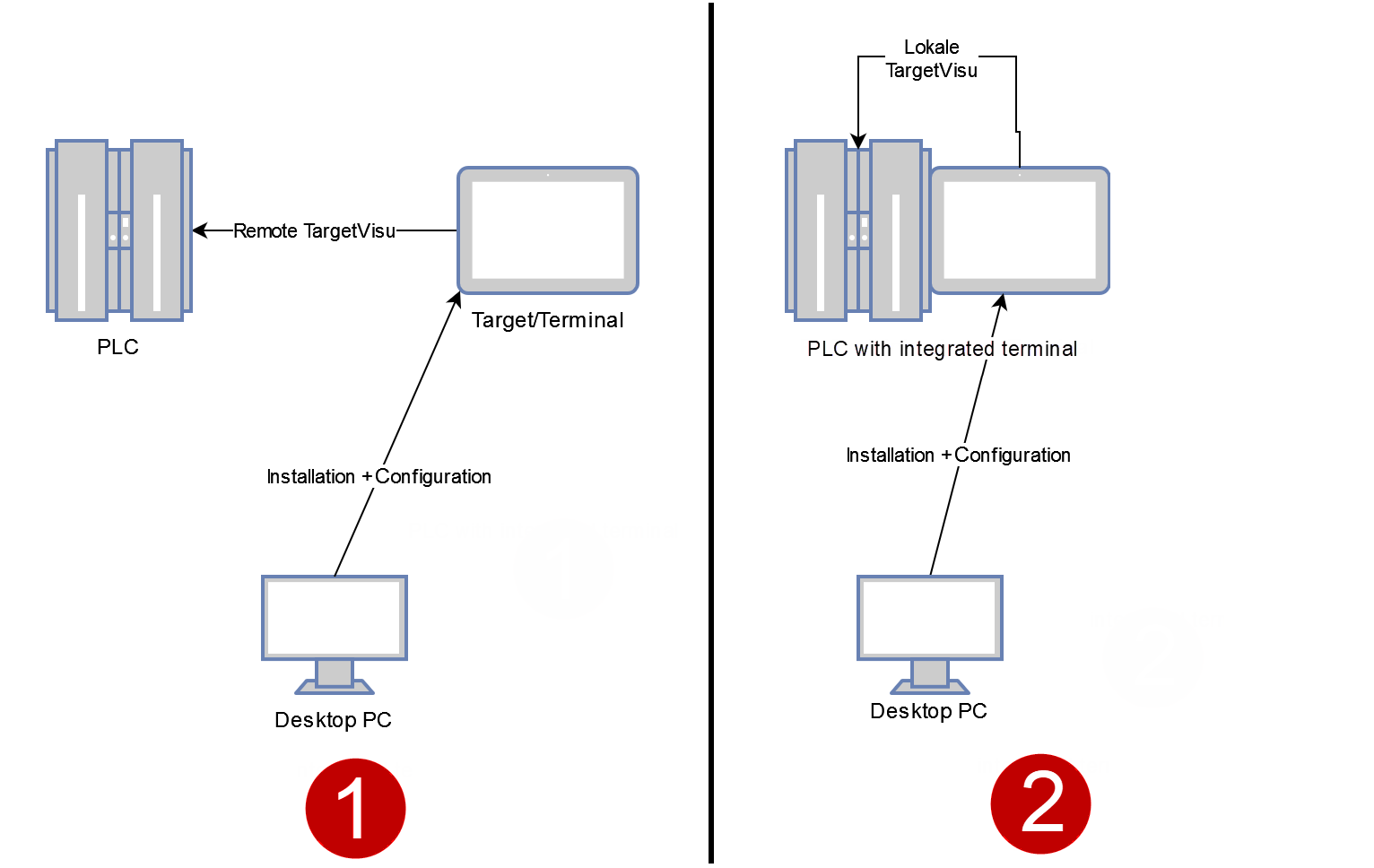

CODESYS TargetVisu for Linux SL can be configured in different ways:

  1. As a Remote TargetVisu which connects to another controller

  2. As a Local TargetVisu which runs directly on the controller

    This use case is not suitable for controllers with real-time demands.

    For more information, see: Performance Optimization


Compared to classic target visualizations, CODESYS TargetVisu for Linux SL provides the following advantages:

  • The processes are separated from each other. An error in the visualization does not automatically bring the machine to a standstill.

  • The visualization consumes fewer resources because it requires fewer components.

  • All communication takes place via CODESYS communication protocol and is therefore secure.

Requirements

To be able to use CODESYS TargetVisu for Linux SL, your system must meet the following requirements:

  • The following libraries need to be installed on the system:

    • libqt6core6

    • libqt6gui6

    • libqt6widgets6

    • libqt6network6

    • libqt6svg6

  • A desktop environment must be installed on the system, for example:

    • Xfce

    • KDE

    • gnome

    • lxde

  • A physical display needs to be connected to the target device.

    Usage with X-Forwarding or similar is not tested.

Important

Qt version 6.4.2 or higher needs to be installed (for example, at least Debian 12 or Ubuntu 23.10).

Using CODESYS TargetVisu for Linux SL in the project

Important

In order to use CODESYS TargetVisu for Linux SL, you need to disable the Support client animations and overlay of native elements option in the Visualization Manager.

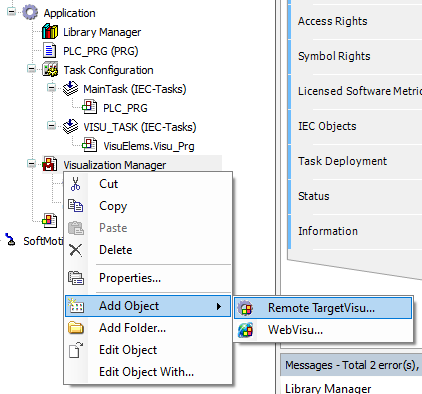

  1. In the device tree, select the Visualization Manager.

  2. Insert the Remote TargetVisu object below it.

  3. Open the Remote TargetVisu in the device editor and define the desired start visualization there.


Installing CODESYS TargetVisu for Linux SL on the target device

  1. Click the Tools → Deploy Control SL menu command.

    The Deploy Control SL tab opens.

  2. Establish a connection to the controller.

    For more information, see: Connecting to the target system

  3. Click the Deployment tab.

  4. In the Product list box, select the CODESYS TargetVisu for Linux SL product.

  5. In the Version list box, select the desired version.

  6. Click the Install button.

    Important

    The account which is used to install CODESYS TargetVisu for Linux SL has to be the same account which is used to log in to the device.

    CODESYS checks that all of the required libraries are installed and that Qt is available in at least the version specified above. Before you can use the target visualization, the target device must be restarted one time.

Troubleshooting

Before CODESYS TargetVisu for Linux SL version 4.13.0.0

Local login fails

If a black screen is displayed when logging in after installation and then the login screen is displayed again, then there may be an error with the DISPLAY environment variable which has been set. To check this, you can clear the Set X Display + User on login option in the configuration dialog of the target visualization in CODESYS. If you can log in to the target device afterwards, then check the output of echo $DISPLAY. Enter this value in /etc/default/codesysvisualization for the value XDISPLAY and try again.

:
