Performance Optimization

• Do not use shared caches for the processor cores of your controller.

• If you are using Ethernet-based fieldbuses for your target device, then use a physical adapter for them. Do not use a switch architecture.

• Use a real-time kernel.

  Important

  For real-time operation on Linux, use the Realtime PREEMPT patch. Using a low-latency kernel is not sufficient because it does not guarantee deterministic real-time properties.

  For more information, see the following:

  • https://realtime-linux.org/getting-started-with-preempt_rt-guide/

  • https://wiki.linuxfoundation.org/realtime/documentation/technical_basics/start

  Many of the following system settings can also be configured directly using the PLCShell via the runtime system or directly via the configuration file of the runtime system. Some system settings will not persist across a system restart. By entering the settings into the configuration file, the settings will automatically be restored when the runtime system starts. Running the corresponding PLCShell command also adds the respective entries to the configuration file.

  PLCShell Command	Configuration File Entry	Function
  rt-get scaling_governor/kernelinfo/hyperthreading/throttling/napi <device>		Returns information about the system settings Example 3. Example rt-get scaling_governor Displays available scaling governors and returns the scaling governor configured for the core
  rt-set scaling_governor <cpu_index> <value>	[CmpLinuxRTDiag] ScalingGovernor.CPU0=performance	Sets the scaling governor to the specified option for specific cores or all cores Example 4. Example set scaling_governor all performance
  rt-set hyperthreading <state>	[CmpLinuxRTDiag] Hyperthreading=off	Turns Hyperthreading on/off
  rt-set throttling <state>	[CmpLinuxRTDiag] Throttling=off	Turns throttling on/off
  rt-set napi <device> <state>	[CmpLinuxRTDiag] Napi=eno1	Enables or disables threaded NAPI for the network adapter
  rt-clear-settings		Deletes all rt-set settings from the configuration file
  rt-marker-set <taskname> <threshold>	[CmpLinuxRTDiag] TraceMarker.TaskName=MainTask TraceMarker.ThresholdUs=100 [SysTask] Linux.MeasureInterval=1	Enables the writing of a kernel trace marker for the specified task when the jitter exceeds the specified limit. Available only if the runtime is run as the root user
  rt-marker-disable		Disables the kernel trace marker
  rt-marker-get		Specifies the task name configured for the kernel trace marker and the jitter limit
  irq-list		Lists all available IRQs, their priorities, and affinity on the system
  irq-set-prio <no | device> <priority>	[CmpLinuxInterrupt] Interrupt.1.Priority=51 Interrupt.1.Device=eno1	Sets the priority of interrupts specified either by number <no> or device <device> to the desired value
  irq-set-affinity <no | device> <bitmask>	[CmpLinuxInterrupt] Interrupt.1.Affinity=128 Interrupt.1.Device=eno1	Sets the core affinity of the interrupt specified either by number <no> or device <device> to the desired bitmask
  irq-clear-settings		Deletes all irq sets settings from the configuration file

  For real-time demands, it is required to use the RT preempt kernel (https://wiki.linuxfoundation.org/realtime/documentation/start) for your Linux system. In the case of Debian and Ubuntu distributions, you will find an RT kernel as a package which you can easily install using the apt command. For details about this, see the manual of your distribution.

  • On Debian systems

    sudo apt-get install linux-image-rt-amd64

  • Use the uname -a command, for example, to check which kernel you are using.

• Avoid using a Windows manager, GUI/X server, or similar on your system.

  Using these tools could affect the real-time capabilities of your system, which results in high jitter in the IEC application.

Use of "rt-tools":

• Installing "rt-tools": sudo apt install rt-tests

• Starting "cyclictest": sudo cyclictest -p 99 -t -m

• The man cyclictest command shows you more CLI options which you can use to better measure more or specific performance aspects of your system.

• Create a test application which roughly describes the application for which you want to optimize your system – in terms of required resources, required performance, and project size).

• You can do this iteratively: first create a very rough approximation and then expand it to get closer and closer to the actual application.

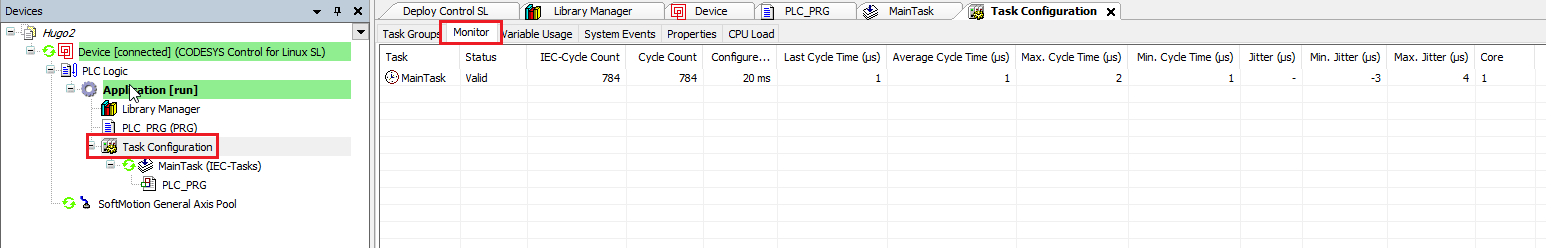

• Min. Jitter (µs) / Max. Jitter (µs)

  • The values should be as close as possible to the values determined by the "cycletest" program. Details are described in the section Setting up Linux.

  • For more information about jitter and latency, see the following: Definitions of Jitter and Latency

  • For more information about the Monitoring tab, see the following: Tab: Monitoring

• Average Cycle Time (µs) / Max. Cycle Time (µs) Cycle Time (µs)

  • The maximum cycle should never come close to the configured cycle time. This leads to problems as soon as the system experiences a high load.

  • Always keep the cycle time as short as possible.

• Split long-running tasks into multiple smaller tasks.

• When running, the maximum cycle time of the highest-priority task should never reach the configured cycle time. If you cannot avoid this, then you should increase the configured cycle time to make sure of consistent execution times.

• When starting fieldbus systems – for example, EtherCAT or PROFINET – the start cycles may result in a slightly higher CPU load. In this case, it makes sense to monitor the CPU load shortly after starting the application.

The following options cannot be changed in CODESYS Virtual Control SL, but need to be configured on the host:

• Set the value for DisableCpuDmaLatency to 1:

  [SysCpuHandling]
  Linux.DisableCpuDmaLatency=1

  • Note that this is the default setting as of runtime version 4.11.0.0.

  • To check your runtime version, click Extras → Update Linux → System → System info.

• Check that the real-time kernel is really being used.

  • In version 4.11.0.0 and higher, you can use the PLC Shell command rt-get kernelinfo to check this.

  • If you have an older version, then you can use the CLI uname -a command to directly test this.

  • If the real-time kernel is not being used, then you need to start the optimization from the beginning.

• You can use the tests from the previous step Configuring the CODESYS runtime system to test your IEC application.

• You can use the Multicore feature in CODESYS.

• Determine the correct priorities for your tasks. Important tasks should have a higher priority.

  Table 6. Mapping of IEC task priorities and Linux thread priorities:

  IEC Task Priority	Runtime Priority	Linux Priority
  --	0	88 (SCHED_FIFO)
  --	31	57 (SCHED_FIFO)
  0 (highest real-time priority)	32	56 (SCHED_FIFO)
  15 (lowest real-time priority)	47	41 (SCHED_FIFO)
  16 (not real-time priority)	48	0 (SCHED_OTHER)
  31 (not real-time priority)	63	0 (SCHED_OTHER)
  --	64	0 (SCHED_OTHER)
  --	255	(SCHED_IDLE)
  Note On a conventional Linux system, most interrupts (IRQs) and kernel workers are at Linux priority 50. Using priorities (with high load) above that can lead to system functions (network/storage) not working as desired.

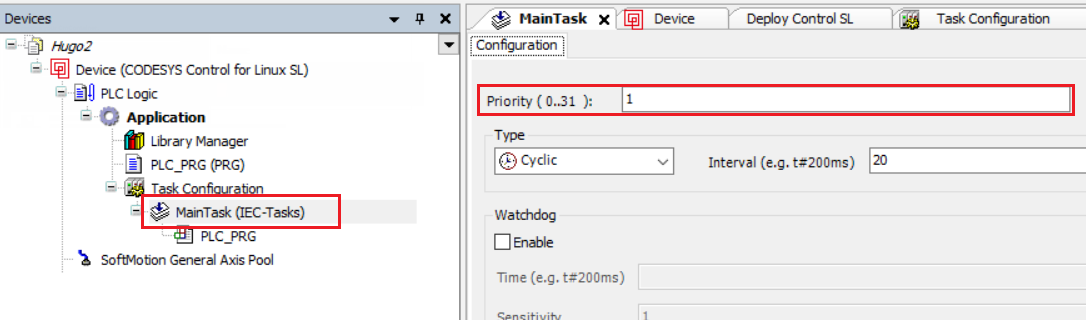

• You can configure the priority of a task in the respective task configuration.



If you do not achieve the desired performance after all the steps mentioned here, then you can look at the following sections:

• Fieldbus-specific information

• [For experts] – Additional tools and topics

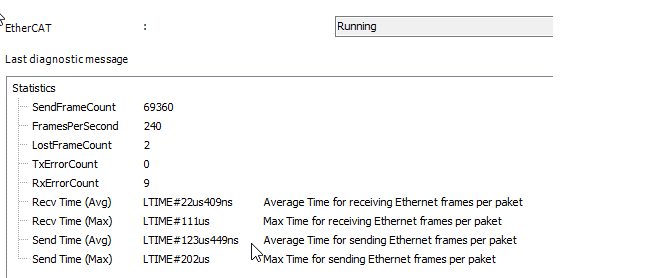

• Check the Send Time / Recv Time values on the EtherCAT status page.

  • An x64 CPU with an Intel Core i7 processor and a good adapter should have less than 10µs.

  • ARM processors with an integrated chip will have ~50µs or more.

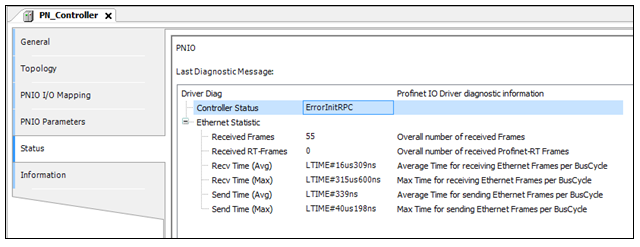

• Check the Send Time / Recv Time values on the PROFINET status page.

  • An x64 CPU with an Intel Core i7 processor and a good adapter should have less than 10µs.

  • ARM processors with an integrated chip will have ~50µs or more.



• To sort your priorities and required IRQs, you can use the PLC Shell commands irq-list and irq-set-prio.

  • These commands use the normal Linux priorities and not the IEC priorities.

  • This optimization is not possible in CODESYS Virtual Control SL, but rather on the host system.

• Use a separate network adapter for the devices.

• For more information, see the following:

  • EtherCAT

  • PROFINET

  • Ethernet/IP

  • CANbus, CANopen

• KernelShark / kernel trace

  • If you discover that the cause of your performance problems has something to do with scheduling, then this is the program to choose. With the help of "kernel trace", you can check if your task is being interrupted by another task, another service, or an interrupt.

    • trace-cmd record -p function

    • You can use KernelShark to examine the generated trace.dat file.

  • In general, scheduling problems can be divided into two categories:

    • Supersession / preemption

      • If the interrupt or the task preventing execution is unnecessary, then disable it.

      • Increase the priority of your task or reduce the priority of the others.

      • Switch to a different CPU core.

      Important

      Check the effectiveness of the changes by using the programs described in the previous chapter.

    • Execution time

      See below "Kernel Function Trace"

• Kernel Function Trace

  • If the processing time of the code is too high, then you can use this tool to find the problem.

  • If the function with too high execution time is in your own code, then you need to optimize it.

  • If the function with too high execution time is in the kernel, then you can try to achieve the desired functionality with another kernel function. Alternatively, you could also pass configuration parameters to the kernel driver in order to reduce the execution time.

  • If none of these options solve the problem, then you will probably need to use more powerful hardware.

Use the following points to check if the right instrument for achieving your performance goals is listed with them:

• PREEMPT_FULL

• isolcpu

• rcu_nocbs

• rcu_nocb_poll

• nosoftlockup

• irqbalance disable

• kernel.sched_rt_runtime_us
