Dialog: Properties

The Properties dialog of the objects below Logical I/Os also have the EtherCAT Safety and Connection Settings tabs, in addition to the Common, Build, and Access Control tabs.

Call: View menu; context menu of the Logical I/Os object

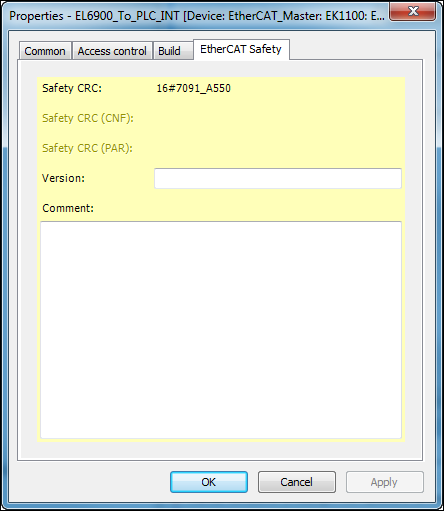

Tab: EtherCAT Safety

Safety CRC
Safety CRC (CNF)	: The reception of the `FailSafeData` command is handled as a communication error.
Safety CRC (PAR)
Version
Comment

Example 16. Example

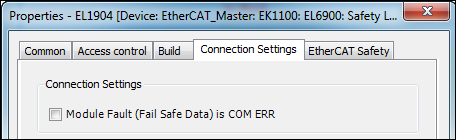

Tab: Connection settings

The Properties dialog of logical I/Os of a safe physical device also contains the Connection Settings dialog.

Connection Settings
Module Fault (Fail Safe Data) is COM ERR	: The reception of the `FailSafeData` command is handled as a communication error.

Example 17. Example
