Example: Global Client Manager
Product: CODESYS Visualization
The GlobalClientManager.project example shows how to use the CURRENTCLIENTID system variable to manage global client data.
 |
Description

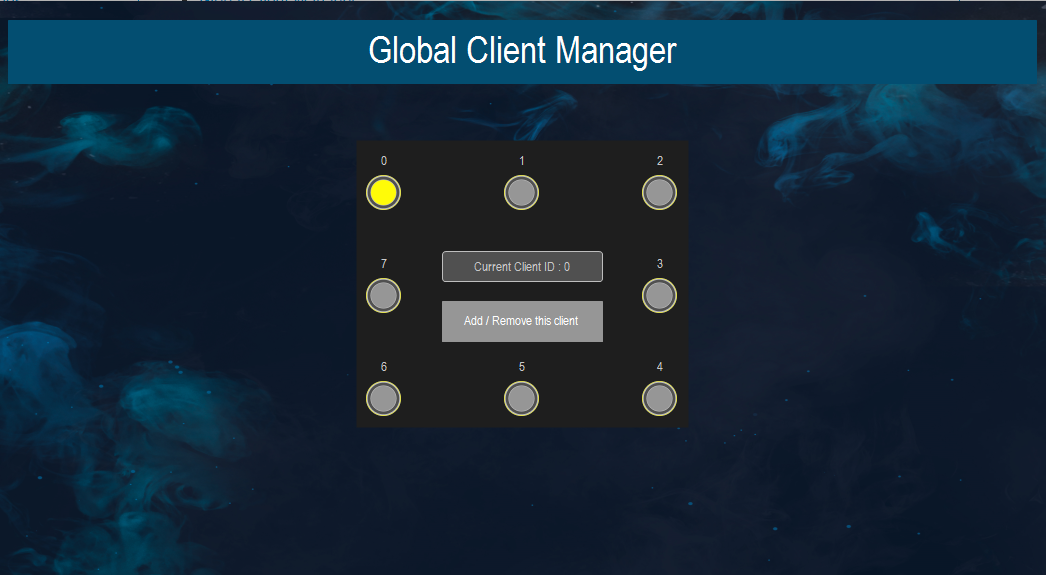

The client ID of the current client can be added or removed to the g_aClientIds global array by the Add / Remove this client function. The value is assigned on the OnMouseDown event of the button. The contents of the array are indicated by eight lamps.
System requirements and restrictions
Programming system | CODESYS Development System (version 3.5.14.0 or higher) |
Runtime system | CODESYS Control Win (version 3.5.14.0) |
Add-on components | - |
Note
DOWNLOAD Project
