Example: Filtering Alarms by Latch and Time Variables
Product: CODESYS Visualization
This example shows how to filter alarms by latch and time variables.
Description
The sample project contains two visualizations to illustrate the filtering of alarms.
 |
 |
Additional information

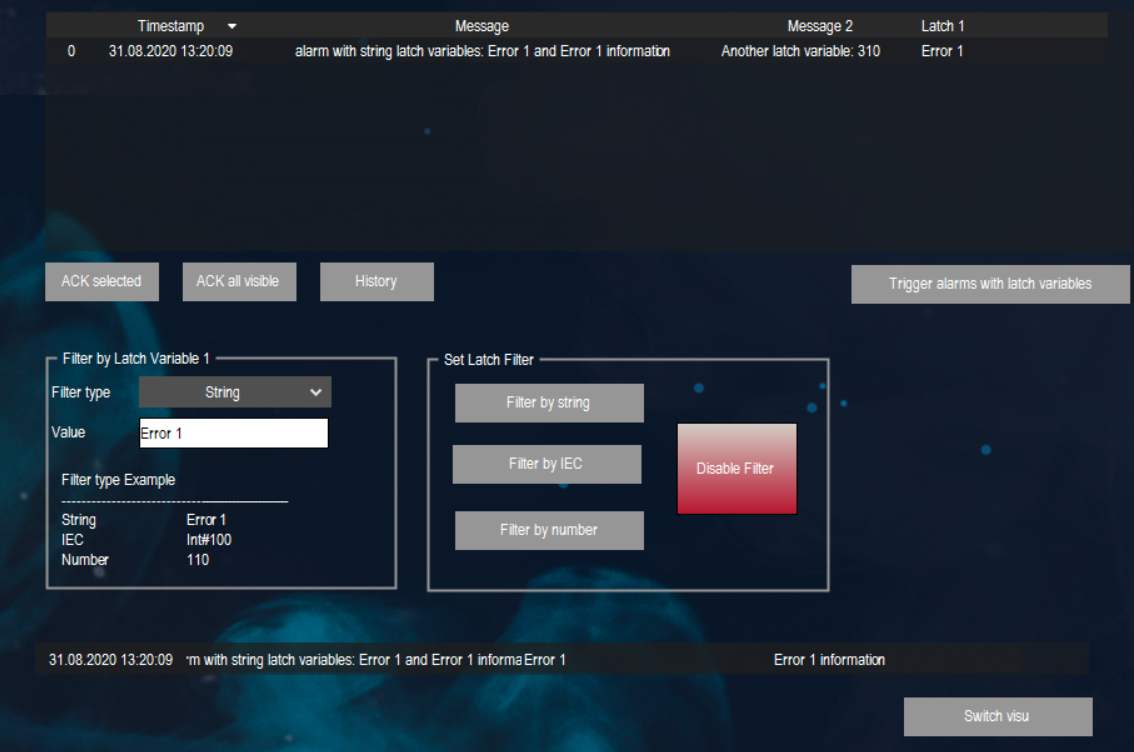

The Visu_FilterByLatch visualization filters alarms by the value of a latch variable. The filter type can be a string, an IEC type, or a number.

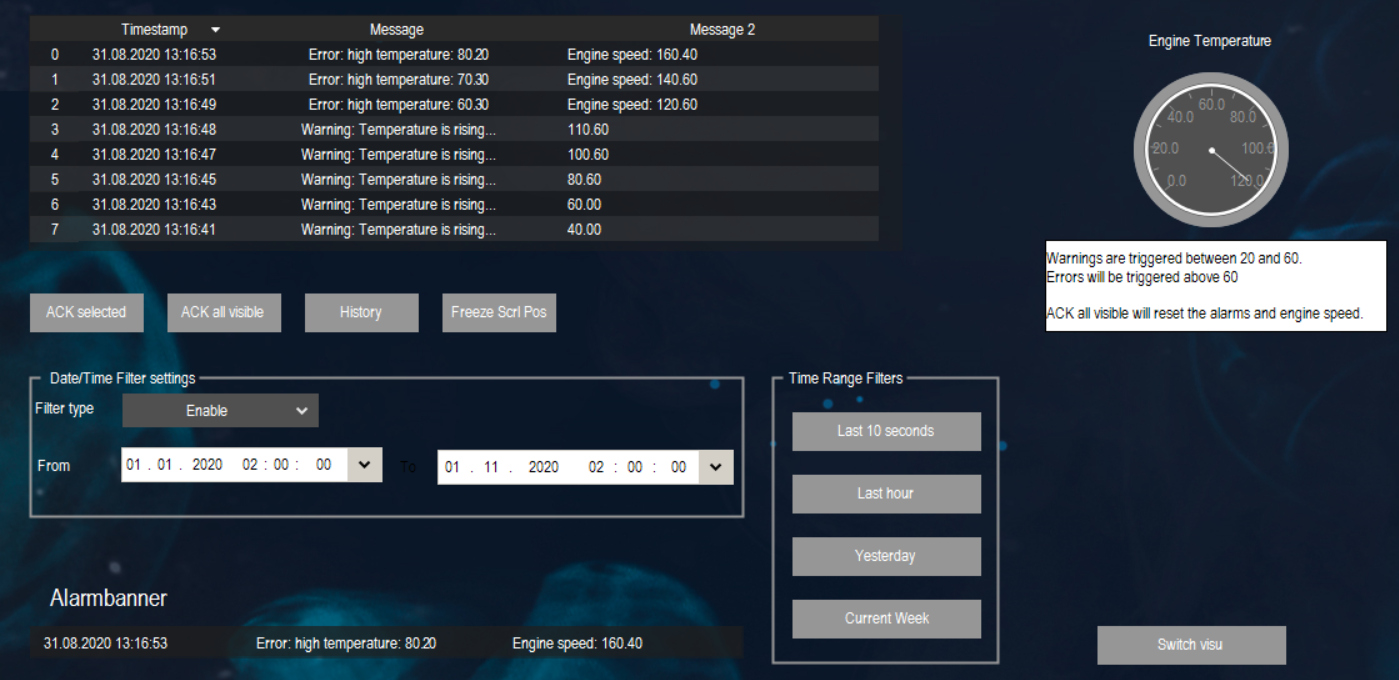

The Visu_FilterByTimeRange visualization demonstrates the filtering of alarms by time and data values.
System requirements and restrictions
Programming system | CODESYS Development System (version 3.5.17.0 or higher) |
Runtime system | CODESYS Control Win (version 3.5.17.0) |
Add-on components | CODESYS Visualization Version 4.0.0.0 |
Note
DOWNLOAD Project
