This example shows how to create and use learnable modules by means of a simple lighting controls.

Description

The CODESYS Application Composer provides the capability of a modular configuration of an application. When the structure is defined one time in the module tree, a static IEC application is generated from it. When this happens, the modules are connected directly with their submodules and cannot be changed at runtime.

This example shows how to create a dynamic configuration from a pool of separate modules at runtime.

In addition, this configuration is stored persistently so that the last set configuration can be downloaded each time the application is restarted.

You can use the included library without any modifications. The project simply shows a possible use case of this library. All required modifications have been marked in the code by means of comments using the keyword AC_ModuleTeaching.

Additional information

Architecture

The idea of learnable modules is based on the pupil–subject–teacher principle.

Pupils can learn subjects which are taught to them by a teacher. The decision as to whether or not a pupil can learn a particular subject is up to the pupil. Therefore, a functioning module configuration always has to consist of a teacher, at least one pupil, and at least one subject.

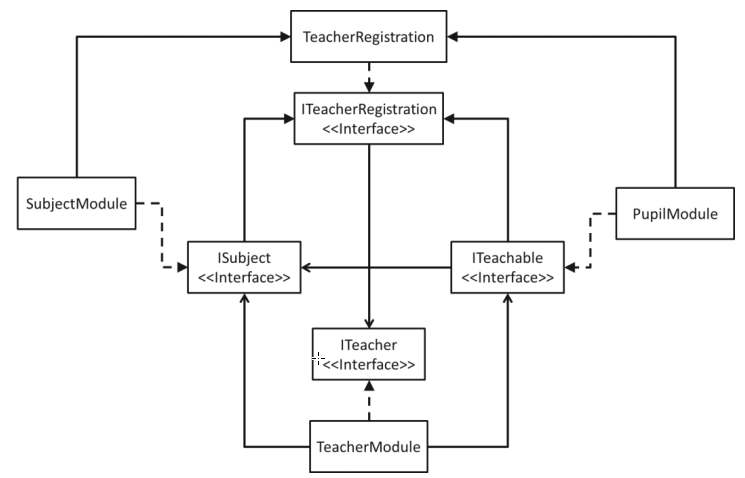

Considering the architecture of the AC_ModuleTeaching library, the following design results:


The TeacherModule, SubjectModule, and PupilModule (or TeacherRegistration) function blocks derive from the AC.Module function block. This allows these three module types to be configured in a module tree.

Only two function blocks are relevant for the implementation of learnable modules:

  • SubjectModule and PupilModule.

  • TeacherModule can be inserted as a module into the module tree without any modification or additional configuration.

Sequence

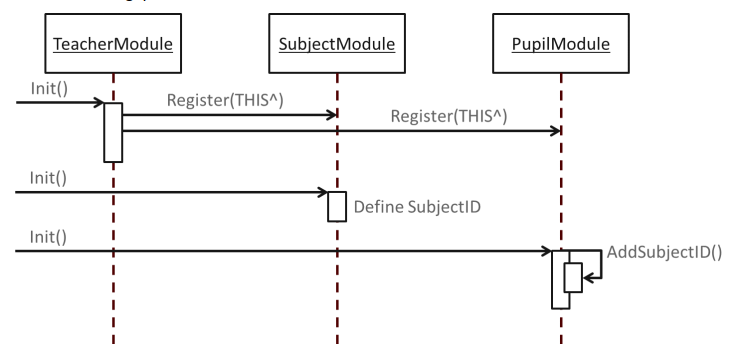

The initialization phase proceeds as follows:


Init() is called from the base Application Composer context in the first PLC cycle.

  • TeacherModule: This module scans all module instances and reports back for each instance of SubjectModule and PupilModule (Register(THIS^)). This establishes the basic framework for cross communication of the modules.

  • SubjectModule: Each of these modules assigns itself a unique SubjectID (UDINT).

  • PupilModule: Each module has to register it own SubjectIDs, which it should be able to learn, via AddSubjectID(UDINT).

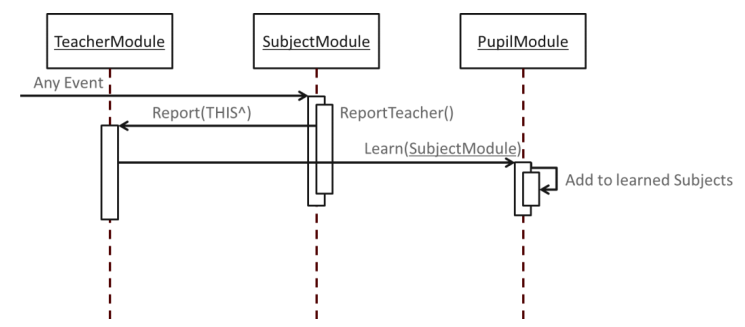

Learning proceeds as follows:


For any event (for example, clicking the "Learn" button in a visualization), a SubjectModule instance reports to a TeacherModule about the call of ReportTeacher(). In ReportTeacher(), Report(THIS^) of the TeacherModule is called implicitly. The TeacherModule provides the SubjectModule interface to all PupilModule instances via Learn(ISubject) with the possibility of learning the SubjectModule. Learning a SubjectModule means that the PupilModule possibly has to cast and mark the SubjectModule itself (for example, by storing in a member variable).

Application

For any specific application, you have to think about what and who will take on the role of "subjects" and "pupils", respectively. For example, subjects can be represented by sensors and pupils by actors. In the example, a light sensor is used for a subject and a light for a pupil. The light can learn to listen to different sensors or forget these again later.

Regarding implementation, the following should be noted:

  • Light EXTENDS ACMT.Pup

    Init(): Add the learnable SubjectID

    Learn(): This method has to be overwritten. At the beginning, the base implementation should then be called:

    IF SUPER^.Learn(itfSubjectToLearn := itfSubjectToLearn) = ACMT.ERROR.NO_ERROR THEN

    If that is successful, then the subject can be learned. Otherwise, the subject is not learnable and can be ignored.

    END_IF

    ForgetAll(): This method should also be overwritten and the local stored subjects removed again.

  • SwitchPush EXTENDS ACMT.SubjectModule // indirectly via inheritance chain SwitchOnOff -> SwitchBase

    Init(): Define the SubjectID

    CallPrioMediumStart(): Call of ReportTeacherif the sensor was pressed longer than 3 seconds.

  • Persistence Manager

    By adding the Persistence Manager, the learned subjects can be saved. As a result, the last status is restored when the application is restarted.

System requirements and restrictions

Programming system

CODESYS Development System (version 3.5.5.0 or higher)

Runtime system

CODESYS Control Win (version 3.5.5.0)

Add-on components

CODESYS Application Composer

Note

_example_icon.png DOWNLOAD Project

After installing the package, you will find the sample project in the directory C:\Users\<user>\CODESYS Examples\AC Module Teaching Example.

:
