Capturing User Input Events

You can capture user input events in the application. For this purpose, you can implement a function block that is executed when user events occur.

Note

0_Sample_ProjectSample project for capturing variable changes via user input

The sample project records variable value changes that were triggered by user input within the visualization. In this project, you will also find the implementation of the method ValueChanged.

Capturing the writing of variables

When the user completes the input of a value (in an input field), an edit control event is closed. You can capture this event in the application as follows.

  1. Create a function block that implements the interface VisuElems.IEditBoxInputHandler from the library VisuElemBase.

  2. Pass the instance to the global event manager VisuElems.Visu_Globals.g_VisuEventManager by calling the method SetEditBoxEventHandler.

Example 7. Example

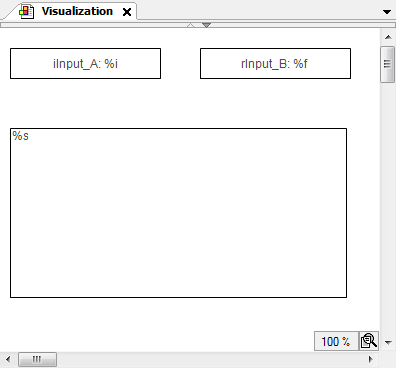

A visualization has two input fields for iInput_A and rInput_B and one text output element.

The input fields are rectangles that the user is prompted to click in order to input text.

The text output element is a rectangle where the contents of the text variable PLC_PRG.stInfo are printed. The text variable contains the last input by a user in one of the input fields and the additional information that was added.


Properties of the rectangle iInput_A

Texts → Text

iInput_A: %i

Text variables → Text variable

PLC_PRG.iInput_A

Properties of the rectangle rInput_B

Texts → Text

iInput_B: %i

Text variables → Text variable

PLC_PRG.rInput_B

Properties of the rectangle for the text output

Texts → Text

%s

Text variables → Text variable

PLC_PRG.stInfo

Implementation of PLC_PRG

PROGRAM PLC_PRG
VAR_INPUT
    iInput_A:INT;  (* Used in the visualization as user input variable*)
    rInput_B:REAL; (* Used in the visualization as user input variable*)
    stInfo : STRING;  (* Informs about the user input via the edit control field;
                        String gets composed by method 'VariableWritten;
                        Result is displayed in the lower rectangle of the visualization *)
END_VAR
VAR
    inst : POU;
    bFirst : BOOL := TRUE;
END_VAR

IF bFirst THEN
    bFirst := FALSE;
    VisuElems.Visu_Globals.g_VisuEventManager.SetEditBoxEventHandler(inst);
    (* Call of method VariableWritten *)
END_IF

Implementation of POU

FUNCTION_BLOCK POU IMPLEMENTS VisuElems.IEditBoxInputHandler
(* no further declarations, no implementation code *)

Method VariableWritten assigned to POU

METHOD VariableWritten : BOOL
(* provides some information always when an edit control field is closed in the visualization, that is a variable gets written by user input in one of the upper rectangles *)
VAR_INPUT
    pVar : POINTER TO BYTE;
    varType : VisuElems.Visu_Types;
    iMaxSize : INT;
    pClient : POINTER TO VisuElems.VisuStructClientData;
END_VAR

// String stInfo, which will be displayed in the lower rectangle, is composed here
PLC_PRG.stInfo := 'Variable written; type: ';
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, INT_TO_STRING(varType));
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, ', adr: ');
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, DWORD_TO_STRING(pVar));
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, ', by: ');
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, SEL(pClient^.globaldata.clienttype = VisuElems.Visu_ClientType.Targetvisualization,'other visu', 'targetvisu'));


Capturing keyboard events

When the user presses and releases the key, a keyboard event is raised in the visualization. You can capture this event in the application as follows.

  1. Create a function block that implements the interface VisuElems.IKeyEventHandler from the library VisuElemBase.

  2. Pass the instance to the global event manager VisuElems.Visu_Globals.g_VisuEventManager by calling the method SetKeyEventHandler.

Example 8. Example

A visualization has one text output element. The text output element is a rectangle where the contents of the text variable PLC_PRG.stInfo are printed. The text variable contains information about the last key pressed by the user.

Properties of the rectangle for the text output

Texts → Text

%s

Text variables → Text variable

PLC_PRG.stInfo

Implementation of the program PLC_PRG

PROGRAM PLC_PRG
VAR_INPUT
    stInfo : STRING;
END_VAR
VAR
    inst : POU;
    bFirst : BOOL := TRUE;
END_VAR

IF bFirst THEN
    bFirst := FALSE;
    VisuElems.Visu_Globals.g_VisuEventManager.SetKeyEventHandler(inst);
END_IF

Implementation of the function block POU

FUNCTION_BLOCK POU IMPLEMENTS VisuElems.IKeyEventHandler
(* no further declarations, no implementation code *)


Implementation of the method VariableWritten of the function block POU

/// This method will be called after a key event is released.
/// RETURN:
/// TRUE - When the handler has handled this event and it should not be handled by someone else
/// FALSE - When the event is not handled by this handler
METHOD HandleKeyEvent : BOOL
VAR_INPUT
    /// Event type. The value is true if a key-up event was released.
bKeyUpEvent : BOOL;
    /// Key code
dwKey : DWORD;
    /// Modifier. Possible values:
    /// VISU_KEYMOD_SHIFT : DWORD := 1;
    /// VISU_KEYMOD_ALT : DWORD := 2;
    /// VISU_KEYMOD_CTRL : DWORD := 4;
dwModifiers : DWORD;
    /// Pointer to the client structure were the event was released
    pClient : POINTER TO VisuStructClientData;
END_VAR
VAR
END_VAR

PLC_PRG.stInfo := 'KeyEvent up: ';
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, BOOL_TO_STRING(bKeyUpEvent));
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, ', key: ');
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, DWORD_TO_STRING(dwKey));
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, ', modifier: ');
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, DWORD_TO_STRING(dwModifiers));
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, ', by: ');
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, SEL(pClient^.globaldata.clienttype =
    VisuElems.Visu_ClientType.Targetvisualization,'other visu', 'targetvisu'));



Recording variable value changes triggered by input events

All visualization elements that change the value of a variable by user input call the interface IValueChangedListener. With this interface, the value changes can be recorded and then processed programmatically.

Note

0_Sample_ProjectSample project for capturing variable changes via user input

The sample project records variable value changes that were triggered by user input within the visualization. In this project, you will also find the implementation of the method ValueChanged.

  1. Implement a function block (example: POU) that implements the interface IValueChangedListener.

    FUNCTION_BLOCK POU IMPLEMENTS VisuElems.IValueChangedListener

    In the device tree, the ValueChanged method is inserted below the function block.

  2. In a program (example: PLC_PRG), implement the IEC code that registers the interface.

    VisuElems.g_itfValueChangedListenerManager.AddValueChangedListener(itfValueChangedListener)

    PLC_PRG gets all value changes by means of the ValueChanged method.

    Now you can record and process the value changes.

Capturing inputs on elements with input options

When a user clicks an element that reacts to input (for example, a rectangle with an input configuration), an event is raised. You can capture this event in the application as follows.

  1. Create a function block that implements the interface VisuElems.IInputOnElementEventHandler from the library VisuElemBase.

  2. Pass the instance to the global event manager VisuElems.Visu_Globals.g_VisuEventManager by calling the method SetInputOnElementEventHandler.

Example 9. Example

A visualization has a rectangle that reacts to input. For example, the toggling of a variable has been configured with OnMouseDown. When the element is clicked by a mouse or touch input, an event HandleInputOnElementEvent is raised.

Implementation of the function VisuInit

FUNCTION VisuInit : BOOL
// Set the input on element event handler
VisuElems.VisuElemBase.g_VisuEventManager.SetInputOnElementEventHandler(PLC_PRG.evInputOnElementEventHandler);

Implementation of the function block POU

FUNCTION_BLOCK POU IMPLEMENTS VisuElems.VisuElemBase.IInputOnElementEventHandler
(* no further declarations, no implementation code *)

Implementation of the method HandleInputOnElementEvent of the function block POU

(* This method will be called when an input on a visualization element was executed.
RETURN:
TRUE - When the handler has handled this event and it should not be handled by someone else
FALSE - When the event is not handled by this handler*)

METHOD HandleInputOnElementEvent : BOOL
    VAR_INPUT
    event    : VisuElems.VisuStructInputOnElementEvent;
END_VAR
IF event.eType = VisuElems.VisuEnumInputOnElementType.MouseDown THEN
    SysProcessExecuteCommand('python D:\Beep.py', 0);
END_IF
(*
Content Beep.py:

import winsound
freq=500
duration=200
winsound.Beep(freq,duration)
*)
