Dialog: Updating the Frame Parameters

Function: Assistance in correcting the detected compilation error due to interface changes in a template visualization

Call: Double-click the following compile error in the message view: The interface of the referenced visualization <name of visualization> does not match the current configuration. Please do an update of the frame references of the current visualization.

Requirement: During compilation, it has been determined that the parameters transferred to a referenced visualization (template visualization) do not match the visualization interface declared there.

Options

First, the "Updating the Frame Parameters" dialog opens with the prompt to select options for updating.

Update all frame parameters in the current project	: All frames whose parameter transfer is outdated are updated.
Update frame parameters only in this frame	: Only the frame specified in the message is updated.
Update frame parameters with a dialog where differences can be seen	: Before the parameters are actually updated, the comparison dialog described below opens. The intended changes are displayed there in a comparison list according to the option specified above. : The changes are made directly without displaying a comparison dialog according to the options specified above.
Button: OK	Closes the dialog and either opens the comparison dialog described below or updates the frame parameters directly.

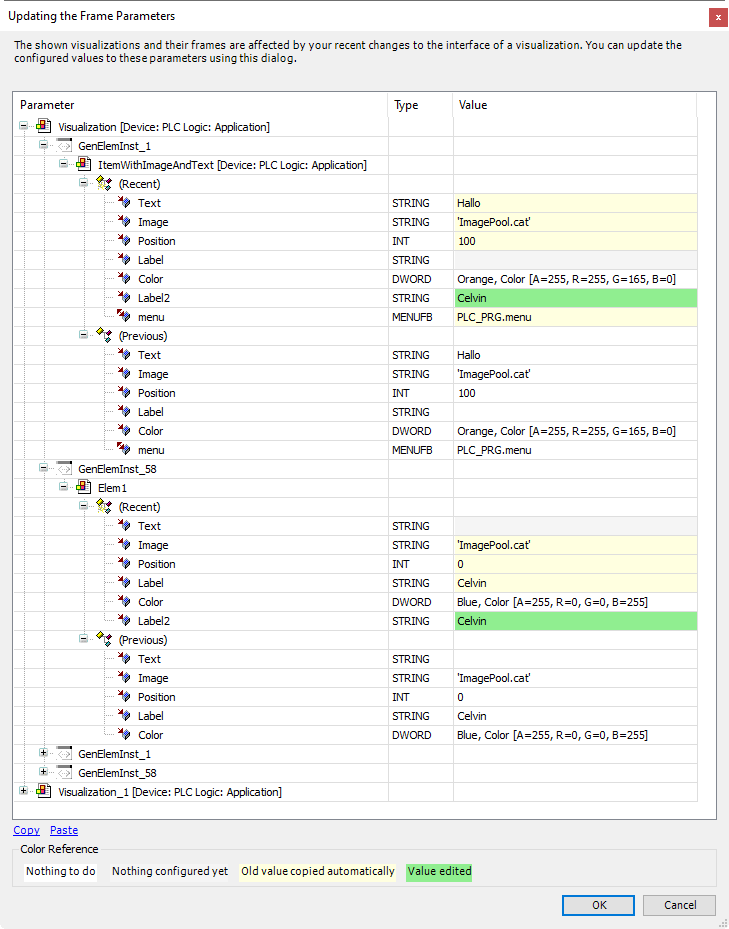

Comparison dialog

You can edit the noted settings.

Parameters	Hierarchical structure of the interface parameters as a tree view
	Top node of the visualization hierarchy with the name of the visualization This contains an element of type Frame or Tabs.
	Name of the element (Frame or Tabs type)
	Name of the referenced visualization
(Recent)	Interface of the referenced visualization with the new parameters You can edit the parameter transfer here.
(Previous)	Interface of the referenced visualization with the previously valid parameters You cannot edit the parameter transfer, but you can use it as a template.
`<Name>`	Variable for the parameter transfer (`VAR_INPUT` scope)
`<Name>`	Variable for the parameter transfer (`VAR_IN_OUT` scope)
Type	Data type of the variable Example: `INT`

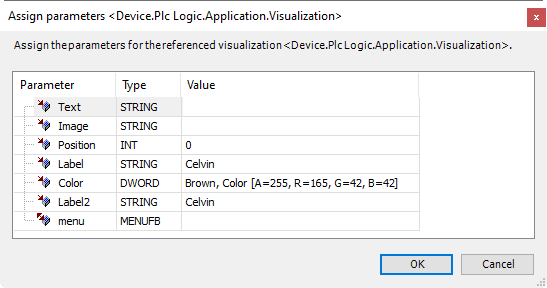

Value	Variable that is transferred as a parameter and with whose value the visualization is initialized during instantiation Example: `PLC_PRG.iVisNr` If the variable lies under the current interface, which is marked in the tree view with (Recent), then you can edit the parameter transfer. Click in the field to open the input field. Double-click in the field to open the Input Assistant. Accept the settings by copying assignments in the Value column and pasting them into another cell. Use the Copy and Paste links to do this.
