Tab: Frame Configuration

Symbol: _visu_icon_interface_editor.png

Function: This tab allows you to edit the configuration of the frame interface for the visualization open in the editor. This editor is used to define and configure the properties of the frame interface. The frame with the referenced visualization then behaves like a visualization element and is supported by the same editors.

Call: Automatic when the visualization object is opened

Check each property for the need to publish

In order to keep the frame interface of a visualization clear, we recommend that you publish as few standard frame properties as possible.

When a visualization with a frame interface is referenced by another visualization by means of a frame element, it brings with it the properties displayed here in the tree view. In the referencing visualization, it then presents itself like an ordinary visualization element: with properties categorized and arranged hierarchically. And with editors to help you specify the value with editors that match the data type.

Table 29. Description of the columns

Hierarchical tree view with categories

Corresponds to the Properties view of a visualization element

A frame interface consists of properties which can be combined thematically and arranged hierarchically using categories.

Element description

Description which is displayed in the visualization editor when using the visualization as a reference in a frame

Property

Externally visible property represented as a node of the hierarchical tree view

Node types:

  • Category nodes, including subordinates:

    • With identifier (category name)

    • Without configuration

      A category combines properties into one category, similar to a container (without being able to store values).

    • Allows for the hierarchical structuring of properties

    Example: Image, Label

  • Nodes, including subordinates:

    • With identifier (property names)

    • With configuration in the columns of the tree view, therefore displayed in normal font

    Example: Show image, Image

  • Standard property nodes

    • Selected from the properties of the frame

    • In grayed out font to indicate that the configuration is at the frame element, not here

    • The default Position, Center, Absolute movement, and State variables properties are always added to the interface (by default).

    • You can add the Forward inputs standard property.

      If the Input configuration standard property is also used, then inputs are forwarded both to the frame itself and to the referenced visualization.

Default Value

Displayed in the Properties view under Value (if nothing else has been configured there)

According to the variable type as literal or variable

Example: 250

Variable Type

Variable type of the property, selected from the data types available project-wide (base data types, user-defined data types, function blocks, library POUs)

Example: INT, PropertyNames.Colors

Text ID

ID from a project-wide text list to localize the name of the property

Example: PropertyNames.Value

Description ID

ID from a project-wide text list which refers to a description of the property

Example: PropertyNames.Value_Desc

Editor Type

Type of inline editor which will open when configuring the element property of the frame:

Editor for Text, Variable, Color, Font, Text Box, Test List, Image, or Combo Box

Variable

Link to the interface variable or project variable

Example: iIn, iMin, iMax, font, font.Label, sl.Label



Example 36. Example: Gauge visualization

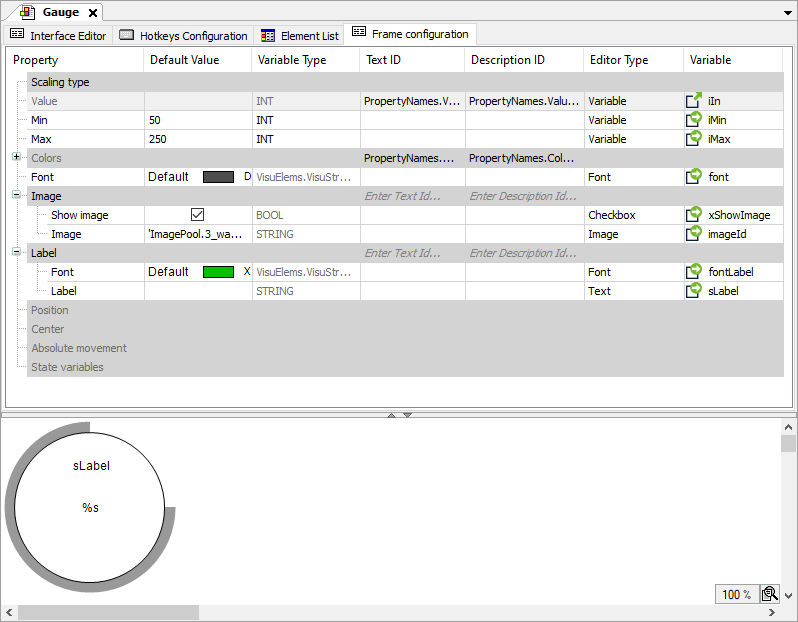

Figure 5. Frame configuration of Gauge
Frame configuration of Gauge


The frame interface of Gauge hat the following properties as parameters: Scaling type, Value, Min, Max, Colors, Font, Image, and Label. In addition, the default Position, Center, Absolute movement, and State variables properties can be parameterized.
