Interruption and Continuation of Movements

You can use the MC_GroupInterrupt and MC_GroupInterruptAt function blocks to interrupt the execution of the commanded movements. For MC_GroupInterrupt, an immediate stop is executed. For MC_GroupInterruptAt, a stop is executed at a specific position. Then the movement can be resumed later with MC_GroupContinue.

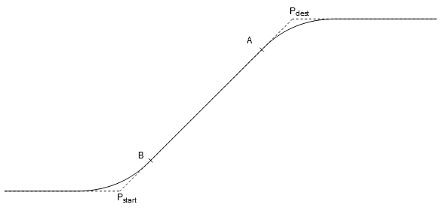

The function block MC_GroupInterruptAt provides the input SMC_GroupInterruptPositionMvtRel. This specifies an interrupt position relative to a movement. The movement is referenced by its SMC_Movement_Id. The position within the movement is defined by a value (real) between 0 and 1, where 0 is the beginning of the movement and 1 is the end. A position between the points B and A is interpreted exactly as if there were no blending. A position between P_start and B or between A and P_dest is projected on the blending path.

When you execute MC_GroupInterrupt or MC_GroupInterruptAt, a path-invariant stop is executed at first, similar to an MC_GroupHalt. Then the state of the axis group ("continue data") is stored in a variable transferred by the user (type SMC_AXIS_GROUP_CONTINUE_DATA). Now the axis group is in the state GroupStandby and can be used normally. A typical example would be that the axis group is jogged.

Later, you can use MC_GroupContinue to continue the interrupted execution. To do this, transfer the saved "continue data". For this to work without errors, the position of the axis group has to match the position it had after execution of MC_GroupInterrupt. (See SMC_GroupGetContinuePosition.)

When a tracking movement has been interrupted (meaning a movement that was commanded relative to a dynamic coordinate system), MC_GroupInterrupt does not stop absolutely (like MC_GroupHalt), but relatively to the dynamic coordinate system. For example, if a workpiece is tracked on a rotary table, MC_GroupInterrupt halts with respect to the workpiece. The axis group continues to follow the workpiece. The continue data has to get updated with SMC_GroupUpdateContinueData if the kinematic has rotary axes with multiple periods. Afterwards, the movement can be continued with MC_GroupContinue.

After a movement stop triggered by MC_GroupHalt or MC_GroupStop, the movement of the axis group can be continued by using SMC_GroupSaveContinueData and MC_GroupContinue without any loss of information. This POU saves the current status, the current position, and all commanded movements. As a result, the movement can be continued later from exactly this position.

Behavior before version 4.12.0.0: The SMC_GroupSaveContinueData function block has to be called in the same cycle where MC_GroupHalt or MC_GroupStop is called. At this time, you need to make sure that SMC_GroupSaveContinueData is called before MC_GroupHalt or MC_GroupStop. Otherwise, the aborted movements will be removed from the queue.

Behavior as of version 4.12.0.0: The SMC_GroupSaveContinueData function block can be called at any time up to the first movement after calling MC_GroupHalt or MC_GroupStop. The continuation position is the current axis group position at the time of the first call of the function block. The saved path consists of all movements which have been accepted before the halt/stop command.

To be able to continue the path at the position where the axis group stopped due to MC_GroupHalt or MC_GroupStop, SMC_GroupSaveContinueData should be called in the cycle where MC_GroupHalt or MC_GroupStop sets the Done signal.

Only one instance of SMC_GroupSaveContinueData may be called per axis group.

If a movement is stopped in motion due to an error, then the individual axes of an axis group are halted individually and switched to the error state. In the process, the TCP leaves the planned path. Now you can acknowledge the error, reset the axis group, and move to the position where the error was detected. Afterwards, you can instruct the axis group to continue the previously planned movements.

You use the SMC_GroupEnableResumeAfterError function block to enable the function to resume the programmed movements after an error. The function block has to be called cyclically in the bus cycle task. Only one instance of this function block may be called per axis group.

If the axis group detects an error and switches to the state Errorstop, then it saves the already accepted movements and the necessary status information in a variable of type SMC_AXIS_GROUP_CONTINUE_DATA. Then this variable contains the "continue data" and is passed as an input of SMC_GroupEnableResumeAfterError.

This allows you to resume the movements later using MC_GroupContinue. If the errors are caused by the commanded movements (for example, workspace violations or an invalid arc radius), then they cannot be resolved in this way. These errors will occur again after the movement continues. The mechanism is intended more for single-axis errors and other external events that force the axis group into the error stop.

MC_GroupContinue requires the axis group to be at a specific position when continuing the movement. In case of resuming after an error, this position is the current position at the time the error was detected. You can use the SMC_GroupGetContinuePosition function block to get this position.
