Commands

Commands for FBD networks

The CODESYS Safety for EtherCAT Safety Module add-on provides the following commands, which are also available in the CODESYS standard FBD editor.

A detailed description of these commands can be found in the CODESYS Help for the standard FBD editor: FBD/LD commands

. Commands

Insert Network
Insert Network (below)
Toggle Network Comment State
Insert Box
Insert Empty Box
Negation
Set Output Connection
Update Parameters
Remove unused FB Call Parameters
Insert Assignment
Data type (available in the context menu of an analog input/output)

Command: Insert Network

Function: Inserts a network into the implementation part of the editor. If a network already exists, then it is inserted before the current network.

Call: Context menu

Example 14. Example

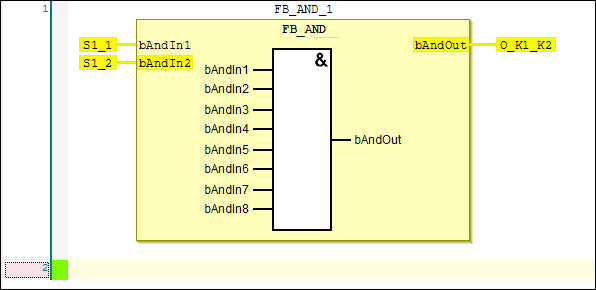

Network 2 inserted below Network 1

Command: Insert Network (below)

Function: Inserts a network below the current network.

Call: Context menu

Toggle Network Comment State

Function: Comments out a network or returns it to the active state. When commented out, the elements which are contained in the network are ignored and shown as disabled.

Call: Context menu

Example 15. Example

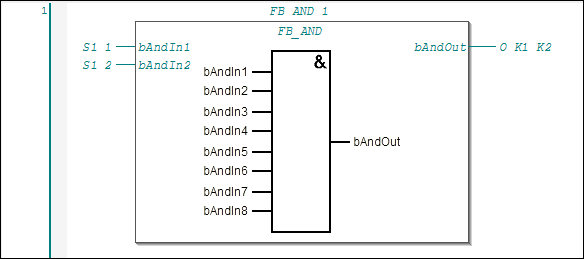

Out-commented network

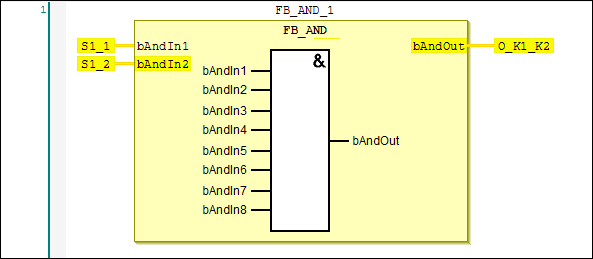

Normal state of the network
