Example: Switching Between Multiple Visualizations

Product: CODESYS Visualization

The example shows how to switch between visualizations which have been referenced in a frame.

Description


Five implementation options are presented in the VisualizationSwitching  example project.

Additional information

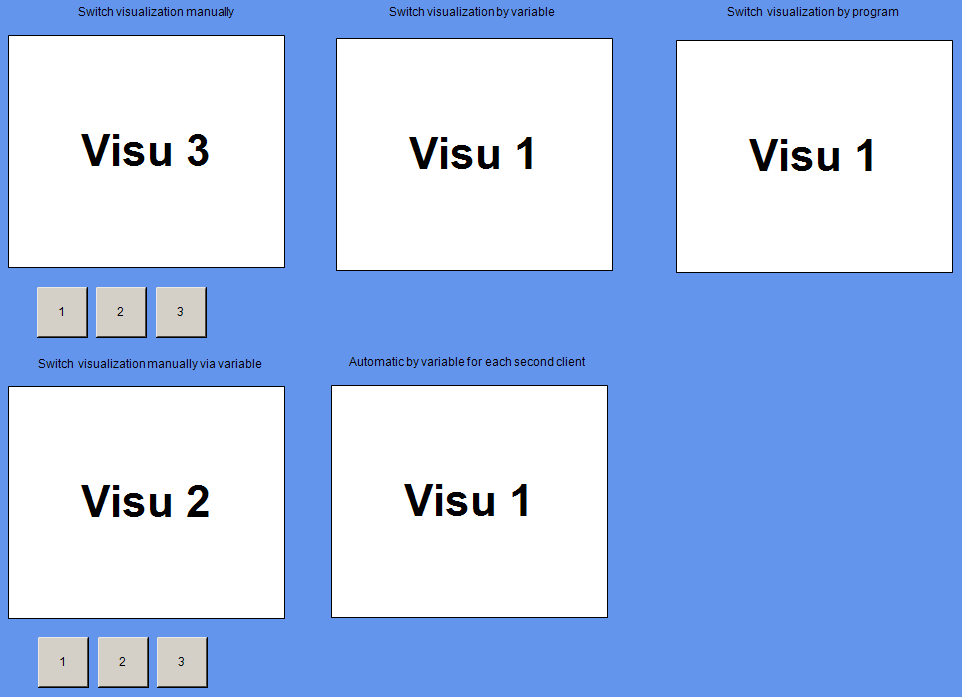

The VisualizationSwitching project includes five frames with the following functions:

  • Frame 1: Manual switching between the visualizations

  • Frame 2: Automatic, program-controlled switching of the visualizations by means of a variable.

  • Frame 3: Automatic program-controlled switching of the visualizations by means of the FrameManager.

  • Frame 4: Manual change of the visualization by means of a variable.

  • Frame 5: Automatic, program-controlled switching between the visualizations by means of a variable for every second client

System requirements and restrictions

Programming system

CODESYS Development System (version 3.5.14.0 or higher)

Runtime system

CODESYS Control Win (version 3.5.14.0)

Add-on components

-

Note

_example_icon.png DOWNLOAD Project
