    Example: SuDoKu Game

    Product: CODESYS Visualization

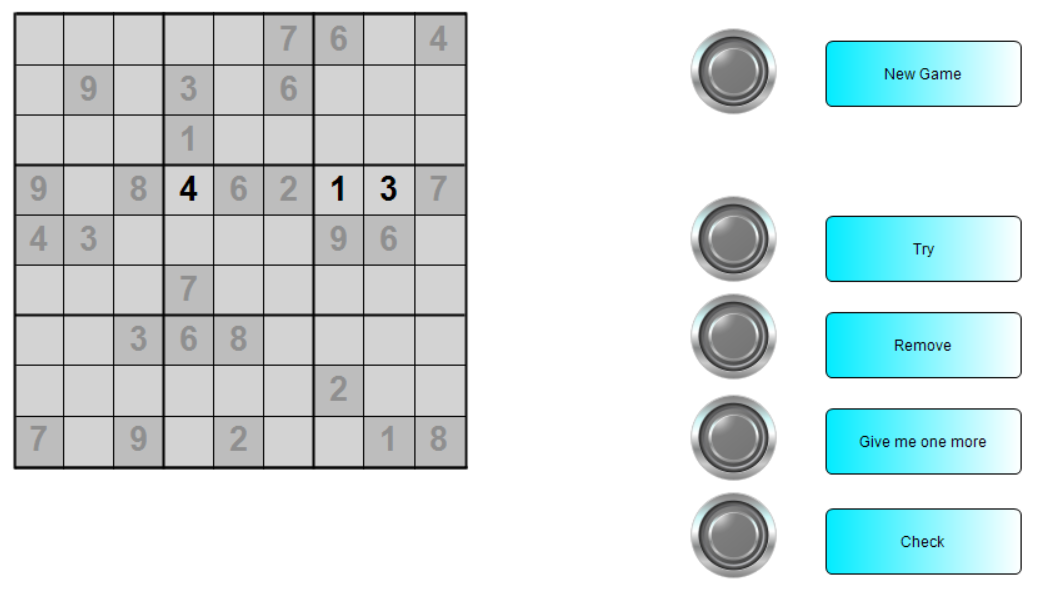

    The example shows a SuDoKu implementation in CODESYS. The visualization of the application is the user interface for playing the game.


    Description

    This SuDoKu consists of a 9×9 grid. Some numbers are preset in the squares. The object of the game is to fill the remaining squares. All the numbers 1–9 appear exactly once in each row, column, and in the nine 3×3 sub-grids. To simplify the game, an additional number appears when the Give me one more button is pressed.

    System requirements and restrictions

    Programming system

    CODESYS Development System (version 3.5.16.0 or higher)

    Runtime system

    CODESYS Control Win (version 3.5.16.0)

    Add-on components

    -

    Note

    _example_icon.png DOWNLOAD Project
