Example: Dialog Box
Product: CODESYS Visualization
This example shows how to use dialog boxes in the visualization.
Description
The visualization user can open the dialogs and enter data. After closing the dialog, the entered data will be saved and displayed in the main window.
 |
 |
Additional information

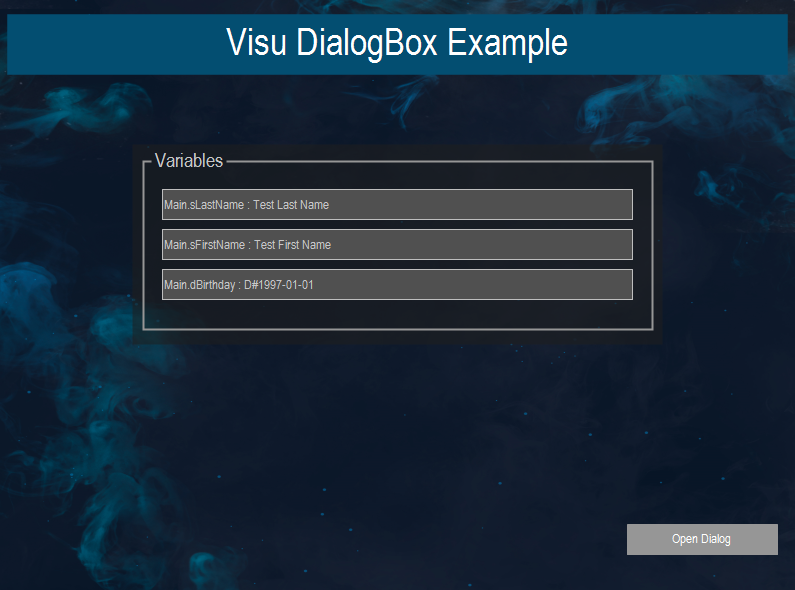

The visualization displays three variables for which a user can enter values by means of an input field.

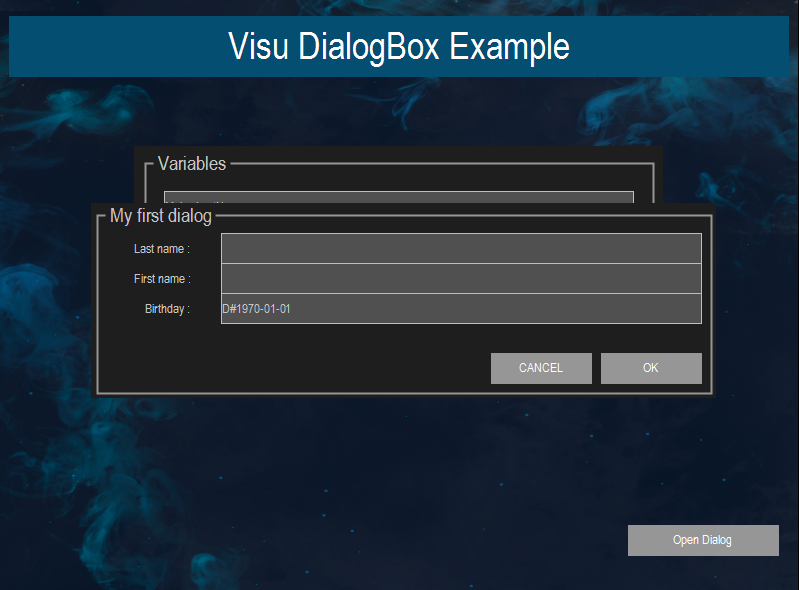

Another dialog is opened by means of the Open Dialog button. The values can be set and saved there. Then they are inserted into the main window.
System requirements and restrictions
Programming system | CODESYS Development System (version 3.5.14.0 or higher) |
Runtime system | CODESYS Control Win (version 3.5.14.0) |
Add-on components | - |
Note
DOWNLOAD Project
