Example: Positioning a Button according to a Visualization Style
Product: CODESYS Visualization

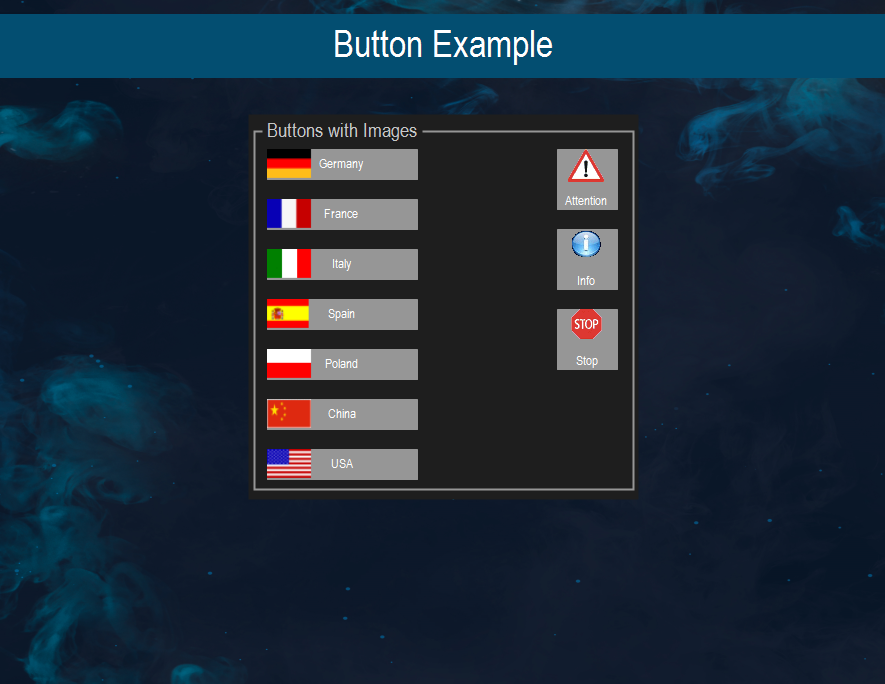

This example shows how to define the text position of buttons with embedded images according to visualization style.
 |
Description
The text position of buttons can be changed using the Style15.visustyle.xml visualization style. You can find the style in the download in the Style ZIP file.
Additional information
The positions are defined by parameters as follows:
<Value name="Button-Absolut-TextOffset-Left" type="DINT">40</Value><Value name="Button-Absolut-TextOffset-Right" type="DINT">0</Value><Value name="Button-Absolut-TextOffset-Top" type="DINT">40</Value><Value name="Button-Absolut-TextOffset-Bottom" type="DINT">0</Value>
System requirements and restrictions
Programming system | CODESYS Development System (version 3.5.14.0 or higher) |
Runtime system | CODESYS Control Win (version 3.5.14.0) |
Add-on components | - |
Note
DOWNLOAD Project
