Example: Cam editor
Product: Basic Motion

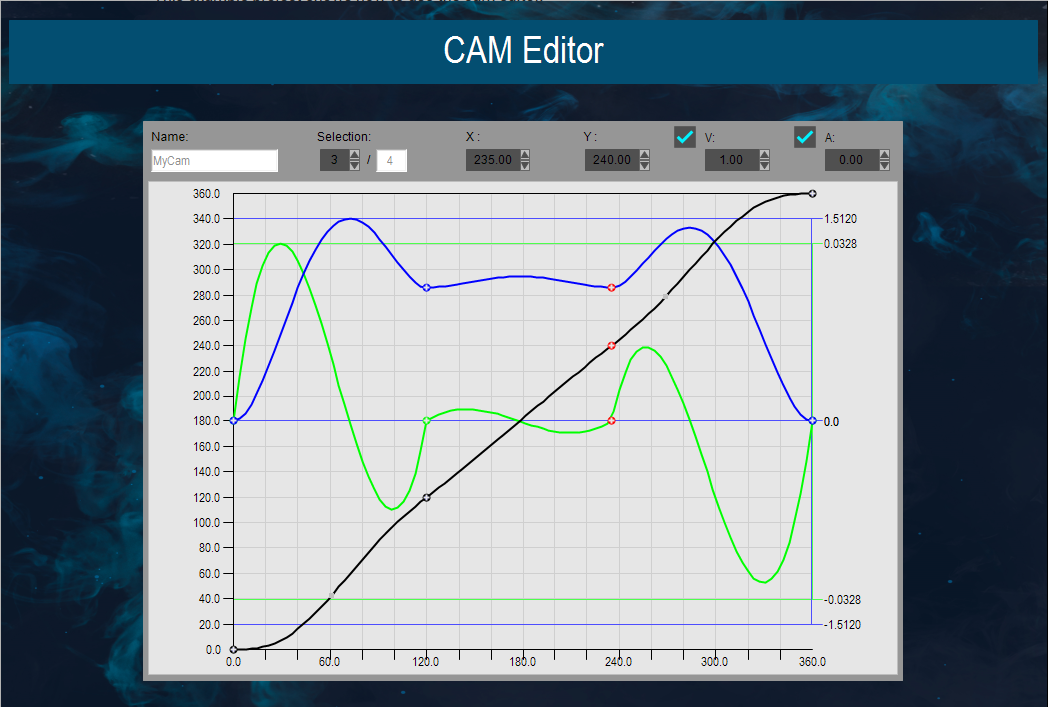

This sample project shows how to use the cam editor. The online cam editor is a visualization template that displays a cam in the visualization. The element allows changing the cam and the cams in online mode.
For details see: Visualization element online cam editor
 |
Description
The visualization element is made available as a visualization template (SMC_VISU_CamEditor) of the SM3_Basic library. It is added to the visualization by means of the Frame visualization element and the Frame selection command from the context menu.
System requirements and restrictions
Programming system | CODESYS Development System (version 3.5.14.0 or higher) |
Runtime system | CODESYS Control Win (version 3.5.14.0) |
Add-on components | - |
Note
DOWNLOAD Project
