Example: DCF77 Decoder

Product: CODESYS Control for Raspberry Pi

The library contains a function block which decodes a DCF77 time signal and releases the transmitted date and time as a DATE_AND_TIME value. An example project shows how to use the library with the CODESYS Control for Raspberry Pi controller.


Description

Library: DCF77_Decoder:

The DCF77_DECODER function block checks whether or not the transmitted time signal is inverted and then waits for a marker which signals the beginning of a new time signal. The DCF77 time signal consists of 59 bits. Because one bit is transmitted per second, the function block outputs the first DATE_AND_TIME value after two minutes at the latest. The DATE_AND_TIME value is updated every minute.

Example: DCF77_Decoder_Example:

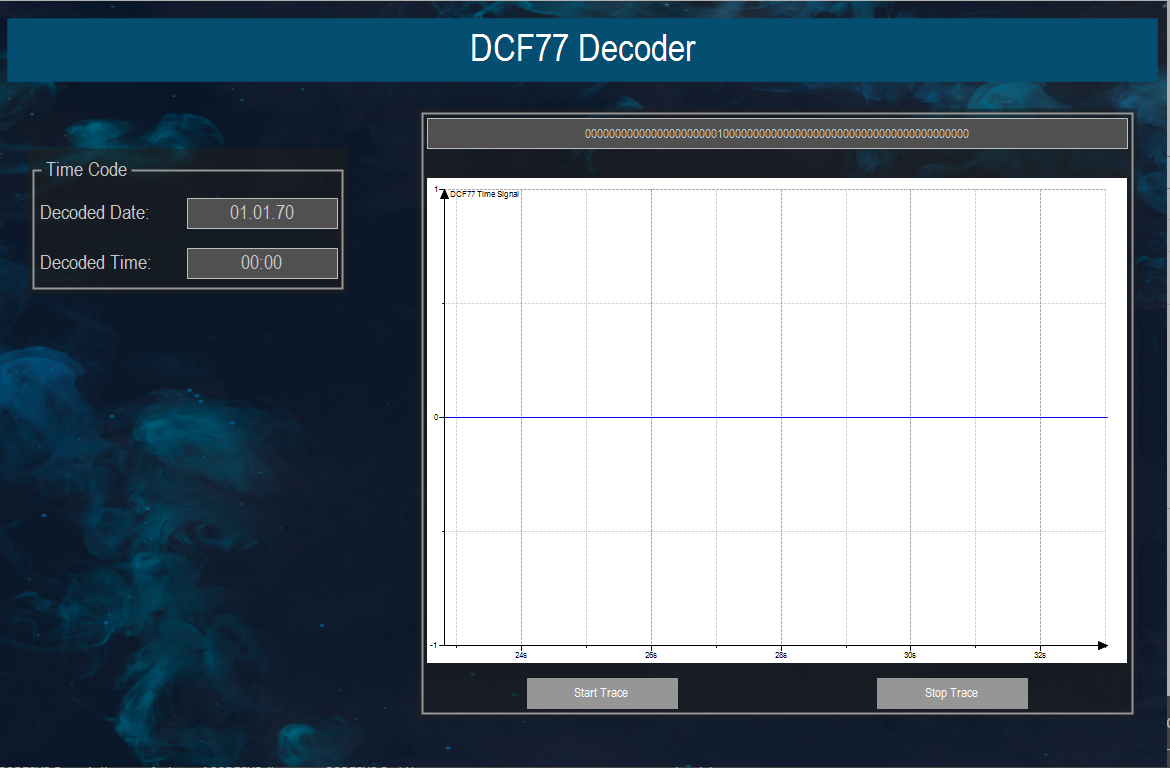

The sample project shows how to use the library with the CODESYS Control for Raspberry Pi runtime system and a DCF receiver. The output of the DCF receiver is connected to a GPIO input of the Raspberry Pi.

System requirements and restrictions

Programming system

CODESYS Development System (version 3.5.14.0 or higher)

Runtime system

CODESYS Control Win (version 3.5.14.0)

Add-on components

DCF77 receiver, CODESYS Control for Raspberry Pi (for the sample project)

Note

_example_icon.png DOWNLOAD Project
