Example: IOT2000 GPIO Demo
Product: CODESYS Control for IOT2000
This sample project shows how to use the GPIOs on an IOT2000 controller with the GPIO extension "IO module" with CODESYS.
 |
Description

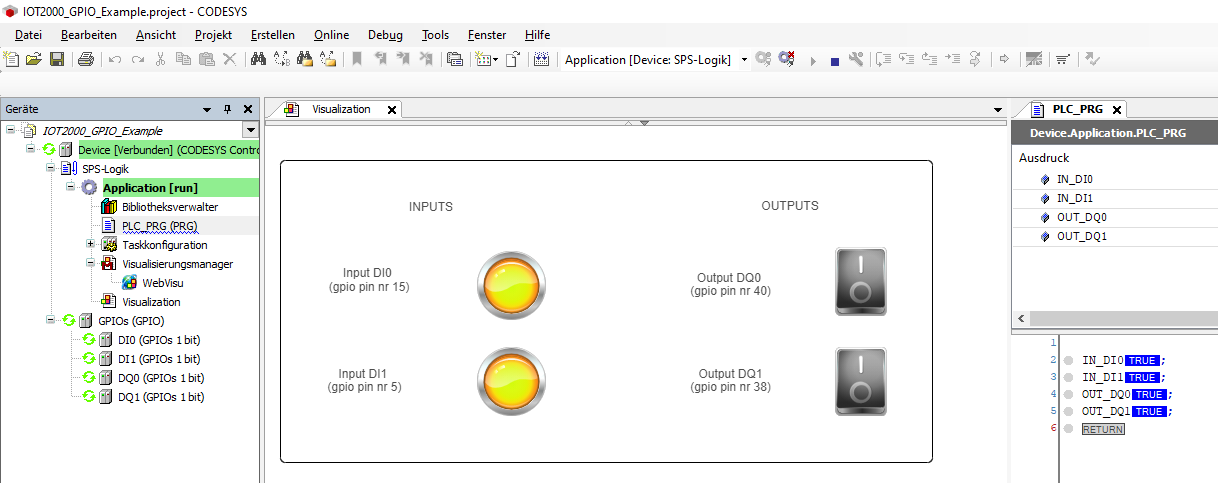

The web visualization shows the status of the inputs as lamps. Switches are used to control the outputs.
Preparation
Install the IOT2000 I/O extension module on your IOT2000 hardware according to the user manual. Install CODESYS Control for IOT2000 on your IOT2000 hardware.
Execution
Start CODESYS Development System and open the sample project. Download it to the controller and start it. You can view and control the inputs and outputs in the online visualization or in the web visualization.
System requirements and restrictions
Programming system | CODESYS Development System (version 3.5.17.0 or higher) |
Runtime system | CODESYS Control for IOT2000 (version 4.1.0.0) |
Add-on components | - |
Note
DOWNLOAD Project
