Example: Fieldbus Diagnosis HMI
Product: CODESYS Development System
This example shows how to display the diagnostic data of the CODESYS fieldbus drivers in a CODESYS visualization.
Description
The GenericDiagnosis project uses predefined visualization components and data models from the GenericDiagnosis.library library, which is also included.

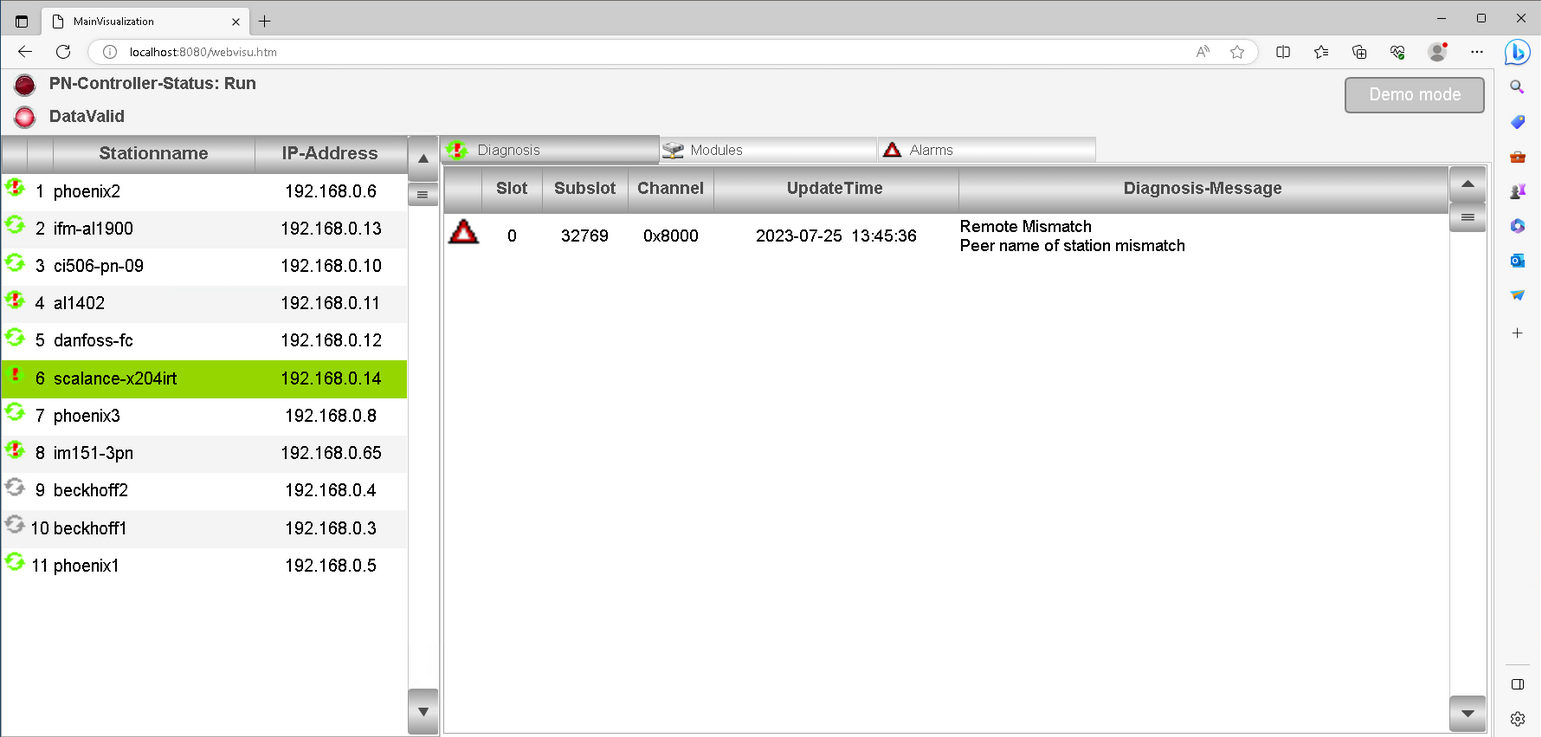

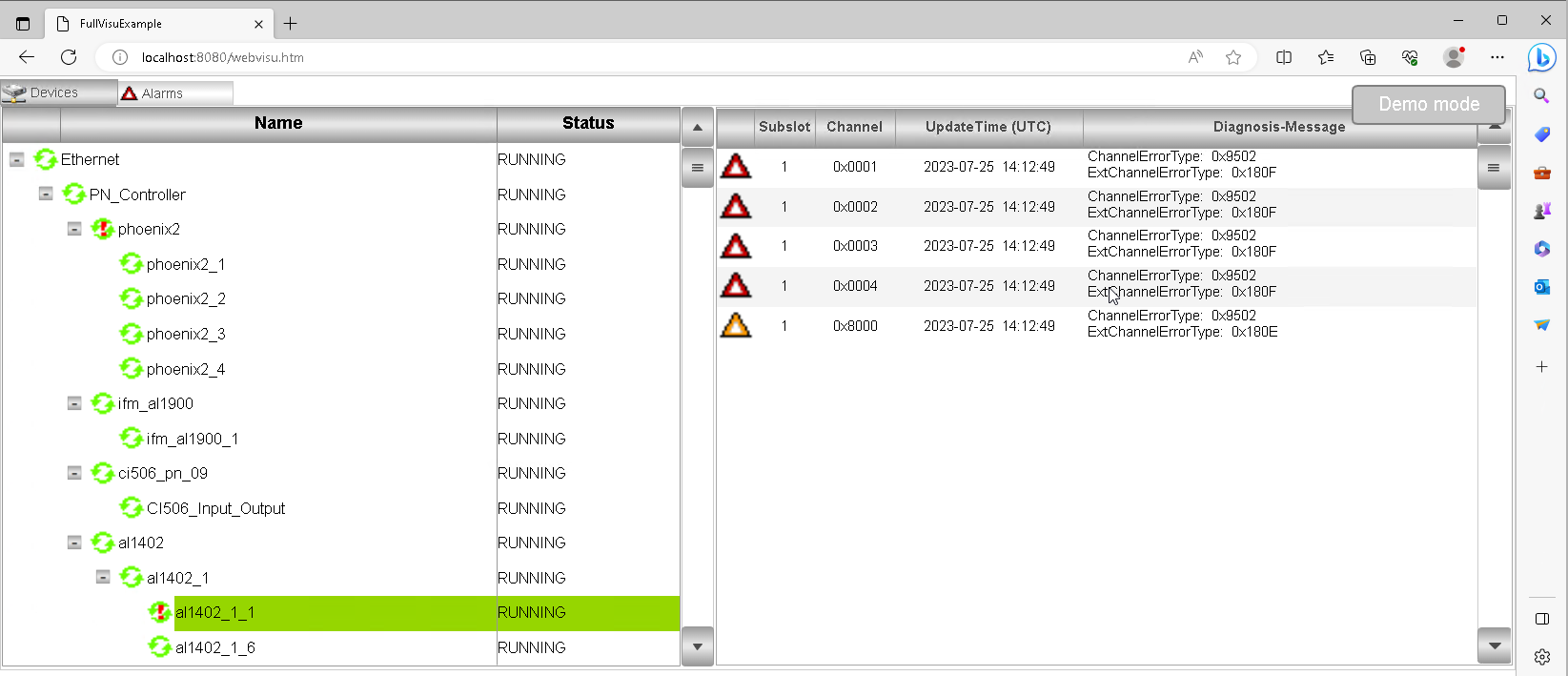

The visualization shows a device tree as an overview and a detailed view for each selected device. The project can be adapted to the fieldbus configuration of the user.
The following fieldbuses are supported:
CODESYS EtherCAT
CODESYS PROFINET
CODESYS CAN
CODESYS Modbus
 |
The ProfinetDiagnosis project is a compact variant which is adapted to the specific properties of Profinet.
 |
System requirements and restrictions
Programming system | CODESYS Development System (version 3.5.18.40 or higher) |
Runtime system | CODESYS Control Win (version 3.5.18.40) |
Add-on components | - |
