Attribute: estimated-stack-usage

The pragma provides an estimated value for the stack size requirement.

Methods with recursive calls cannot pass a stack check because stack usage cannot be determined. As a result, a warning is issued. To prevent this warning, you can give the method an estimated value (in bytes) for the stack size requirement. Then the method passes the stack check successfully.

Syntax

{attribute 'estimated-stack-usage' := ' <estimated stack size in bytes> '}

Insert location: First line above the declaration part of the method.

Example 264. Example

{attribute 'estimated-stack-usage' := '127'} // 127 bytes
METHOD PUBLIC DoIt : BOOL
VAR_INPUT
END_VAR

For more information, see: Calling a Method

Recursive method call

Within its implementation, a method can call itself, either directly by means of the THIS pointer, or by means of a local variable for the assigned function block.

Tip

Use recursions mainly for processing recursive data types such as linked lists. In general, we recommend to be careful when using recursion, as unexpectedly deep recursions can cause stack overflow and machine downtime.

Example 265. Calculation of the factorial

The following program PLC_PRG calculates the factorial of a number in the FB_Factorial function block in a different way, each in its own method.

Method m_Iterative: Iterative
Method m_Pragmaed: Recursive with warning suppression
Method m_Recursive: Recursive
Method m_Temp: Temporary with warning suppression

A warning is issued for the m_Recursive method only.

// Contains the data  of the factorial calculation of uiNumber
TYPE FACTORIAL_RESULT :
STRUCT
    uiNumber : UINT;
    udiIterative : UDINT;
    udiRecursive : UDINT;
    udiPragmaed : UDINT;
    udiTemp : UDINT;
END_STRUCT
END_TYPE

PROGRAM PLC_PRG
VAR
    fb_Factorial_A : FB_Factorial;
    factorial_A : FACTORIAL_RESULT := (uiNumber := 9, udiIterative := 0, udiRecursive := 0, udiPragmaed := 0 );
END_VAR
fb_Factorial_A.p_Number := factorial_A.uiNumber;
factorial_A.udiIterative := fb_Factorial_A.m_Iterative();
factorial_A.udiRecursive := fb_Factorial_A.m_Recursive(uiN := factorial_A.uiNumber);
factorial_A.udiPragmaed := fb_Factorial_A.m_Pragmaed(uiN := factorial_A.uiNumber);
factorial_A.udiTemp := fb_Factorial_A.m_Temp(uiN := factorial_A.uiNumber);

//Factorial calculation in different ways
FUNCTION_BLOCK FB_Factorial
VAR_INPUT
END_VAR
VAR_OUTPUT
END_VAR
VAR
    uiN : UINT;
    udiIterative : UDINT;
    udiPragmaed : UDINT;
    udiRecursive : UDINT;
END_VAR

    // Iterative calculation
    METHOD PUBLIC m_Iterative : UDINT
    VAR
        uiCnt : UINT;
    END_VAR
    m_Iterative := 1;
    IF      uiN > 1 THEN
            FOR uiCnt := 1 TO uiN DO
                    m_Iterative := m_Iterative * uiCnt;
            END_FOR;
            RETURN;
    ELSE
            RETURN;
    END_IF;

    //Recursive calculation with suppressed warning
    {attribute 'estimated-stack-usage' := '99'}
    METHOD PUBLIC m_Pragmaed : UDINT
    VAR_INPUT
            uiN : UINT;
    END_VAR
    VAR
    END_VAR
    m_Pragmaed := 1;
    IF      uiN > 1 THEN
            m_Pragmaed := uiN * THIS^.m_Pragmaed(uiN := (uiN - 1));
            RETURN;
    ELSE
            RETURN;
    END_IF;

    //Recursive calculation
    METHOD PUBLIC m_Recursive : UDINT
    VAR_INPUT
            uiN : UINT;
    END_VAR
    VAR
    END_VAR
    m_Recursive := 1;
    IF      uiN > 1 THEN
            m_Recursive := uiN * THIS^.m_Recursive(uiN := (uiN - 1) );
            RETURN;
    ELSE
            RETURN;
    END_IF;

    // Called by temporary FB instance
    {attribute 'estimated-stack-usage' := '99'}
    METHOD PUBLIC m_Temp : UDINT
    VAR_INPUT
            uiN : UINT;
    END_VAR
    VAR
            fb_Temp : FB_Factorial;
    END_VAR
    m_Temp := 1;
    IF      uiN > 1 THEN
            m_Temp := uiN * fb_Temp.m_Temp(uiN := (uiN - 1));
            RETURN;
    ELSE
            RETURN;
    END_IF;

PROPERTY p_Number : UINT
uiN := p_Number; //Setter method

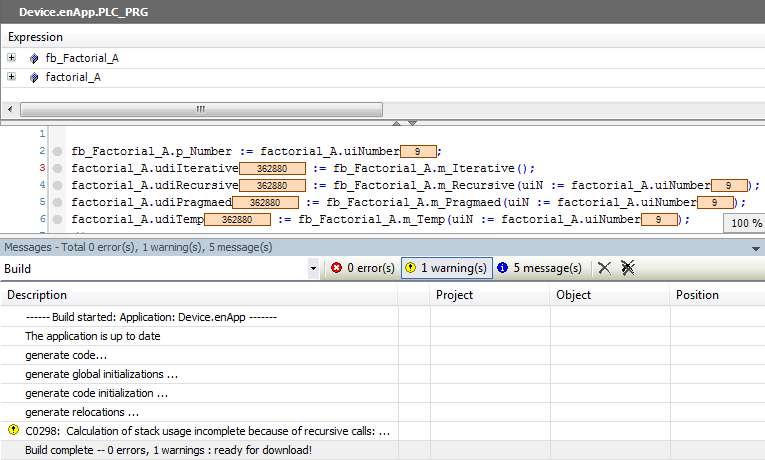

Only the m_Recursive issues a warning when the program is executed.
