Conversion: DATE, DT, TOD, LDATE, LDT, LTOD

The operators convert a date and time value into the specified data type and return a type-converted value.

The data types DATE and DT use the same memory format internally and are stored as DWORD. The resolution for DATE is 1 day. The resolution for DT is 1 second. Both begin at January 1, 1970. TOD is stored as DWORD with a resolution of 1 millisecond.

The keywords DT and TOD are alternative spellings for the data types DATE_AND_TIME and TIME_OF_DAY. However, the latter are not mapped as a type conversion command.

The data types LDATE and LDT and LTOD use the 64-bit memory format LWORD internally.

Call syntax: DATE/DT/TOD_TO_< target type> ( <operand> )

Call syntax: LDATE/LDT/LTOD_TO_< target type> ( <operand> )

Operand	Data Type	Description
Variable or literal	`DATE \| DATE_AND_TIME \| DT \| TIME_OF_DAY \| TOD` `LDATE \| LDATE_AND_TIME \| LDT \| LTIME_OF_DAY \| LTOD`	Data type: DATE

Operand

Data Type

Description

Variable or literal

DATE | DATE_AND_TIME | DT | TIME_OF_DAY | TOD

LDATE | LDATE_AND_TIME | LDT | LTIME_OF_DAY | LTOD

Data type: DATE

Table 16. Operators: DATE/DT/TOD_TO_<target type>

DATE_TO_<type>	DT_TO_<type>	TOD_TO_<type>	Example	Return Value	Description
`DATE_TO___UXINT`	`DT_TO___UXINT`	`TOD_TO___XINT`			__UXINT, __XINT, __XWORD
`DATE_TO___XINT`	`DT_TO___XINT`	`TOD_TO___XINT`			__UXINT, __XINT, __XWORD
`DATE_TO___XWORD`	`DT_TO___XWORD`	`TOD_TO___XWORD`			__UXINT, __XINT, __XWORD
`DATE_TO_BIT`	`DT_TO_BIT`	`TOD_TO_BIT`			BIT
`DATE_TO_BOOL`	`DT_TO_BOOL`	`TOD_TO_BOOL`	DATE_TO_BOOL(D#1970-1-1) DATE_TO_BOOL(D#2019-9-1) DT_TO_BOOL(DT#1970-1-1-0:0:0) DT_TO_BOOL(DT#2019-9-1-12:0:0) TOD_TO_BOOL(TOD#0:0:0) TOD_TO_BOOL(TOD#12:0:0)	`FALSE` `TRUE` `FALSE` `TRUE` `FALSE` `TRUE`	If and only if the operand value can be interpreted as "0", then the operator returns a `FALSE`. BOOL
`DATE_TO_BYTE`	`DT_TO_BYTE`	`DTOD_TO_BYTE`			Integer
-	`DT_TO_DATE`	`TOD_TO_DATE`			Resolution in seconds (although only the day is displayed)
`DATE_TO_DINT`	`DT_TO_DINT`	`TOD_TO_DINT`	DATE_TO_DINT(D#1970-1-1) DATE_TO_DINT(D#1970-1-2) DATE_TO_DINT(D#2019-9-1) DT_TO_DINT(DT#1970-1-1-0:0:0) DT_TO_DINT(DT#1970-1-1-0:0:1) DT_TO_DINT(DT#2019-9-1-12:0:0.0) TOD_TO_DINT(TOD#0:0:0) TOD_TO_DINT(TOD#12:0:0)	`0` `86400` `1567339200` `0` `1` `1567339200` `0` `43200000`	Integer
`DATE_TO_DT`	-	`TOD_TO_DT`			Data type: DATE
`DATE_TO_DWORD`	`DT_TO_DWORD`	`TOD_TO_DWORD`			Integer
`DATE_TO_INT`	`DT_TO_INT`	`TOD_TO_INT`			Integer
`DATE_TO_LDATE`	`DT_TO_LDATE`	`TOD_TO_LDATE`			Data type: DATE
`DATE_TO_LDT`	`DT_TO_LDT`	`TOD_TO_LDT`			Data type: DATE
`DATE_TO_LINT`	`DT_TO_LINT`	`TOD_TO_LINT`			Integer
`DATE_TO_LREAL`	`DT_TO_LREAL`	`TOD_TO_LREAL`			REAL, LREAL
`DATE_TO_LTIME`	`DT_TO_LTIME`	`TOD_TO_LTIME`			Data type: DATE
`DATE_TO_LTOD`	`DT_TO_LTOD`	`TOD_TO_LTOD`			Data type: DATE
`DATE_TO_LWORD`	`DT_TO_LWORD`	`TOD_TO_LWORD`			Integer
`DATE_TO_REAL`	`DT_TO_REAL`	`TOD_TO_REAL`			REAL, LREAL
`DATE_TO_SINT`	`DT_TO_SINT`	`TOD_TO_SINT`			Integer
`DATE_TO_STRING`	`DT_TO_STRING`	`TOD_TO_STRING`	DATE_TO_STRING(D#1970-1-1) DT_TO_STRING(D#1970-1-1-0:0:1) TOD_TO_STRING(12:0:1)	`'D#1970-1-1'` `'D#1970-1-1-0:0:1'` `'TOD#12:0:1'`	STRING
`DATE_TO_TIME`	`DT_TO_TIME`	`TOD_TO_TIME`			Data type: DATE
`DATE_TO_TOD`	`DT_TO_TOD`	-			Data type: DATE
`DATE_TO_UDINT`	`DT_TO_UDINT`	`TOD_TO_UDINT`			Integer
`DATE_TO_UINT`	`DT_TO_UINT`	`TOD_TO_UINT`			Integer
`DATE_TO_ULINT`	`DT_TO_ULINT`	`TOD_TO_ULINT`			Integer
`DATE_TO_USINT`	`DT_TO_USINT`	`TODE_TO_USINT`			Integer
`DATE_TO_WORD`	`DT_TO_WORD`	`TOD_TO_WORD`			Integer
`DATE_TO_WSTRING`	`DT_TO_WSTRING`	`TOD_TO_WSTRING`	DATE_TO_WSTRING(D#1970-1-1) DT_TO_WSTRING(D#1970-1-1-0:0:1) TOD_TO_WSTRING(12:0:1)	`"D#1970-1-1"` `"D#1970-1-1-0:0:1"` `"TOD#12:0:0"`	WSTRING

Table 17. Operators: LDATE/LDT/LTOD_TO_<target type>

LDATE_TO_<type>	LDT_TO_<type>	LTOD_TO_<type>	Description
`LDATE_TO___UXINT`	`LDT_TO___UXINT`	`LTOD_TO___XINT`	__UXINT, __XINT, __XWORD
`LDATE_TO___XINT`	`LDT_TO___XINT`	`LTOD_TO___XINT`	__UXINT, __XINT, __XWORD
`LDATE_TO___XWORD`	`LDT_TO___XWORD`	`LTOD_TO___XWORD`	__UXINT, __XINT, __XWORD
`LDATE_TO_BIT`	`LDT_TO_BIT`	`LTOD_TO_BIT`	BIT
`LDATE_TO_BOOL`	`LDT_TO_BOOL`	`LTOD_TO_BOOL`	BOOL
`LDATE_TO_BYTE`	`LDT_TO_BYTE`	`LTOD_TO_BYTE`	Integer
`LDATE_TO_DATE`	`LDT_TO_DATE`	`LTOD_TO_DATE`	Seconds (although only the day is displayed) Data type: DATE
`LDATE_TO_DINT`	`LDT_TO_DINT`	`LTOD_TO_DINT`	Integer
`LDATE_TO_DT`	`LDT_TO_DT`	`LTOD_TO_DT`	Data type: DATE
`LDATE_TO_DWORD`	`LDT_TO_DWORD`	`LTOD_TO_DWORD`	Integer
`LDATE_TO_INT`	`LDT_TO_INT`	`LTOD_TO_INT`	Integer
-	`LDT_TO_LDATE`	`LTOD_TO_LDATE`	Nanoseconds (although only the day is displayed) Data type: DATE
`LDATE_TO_LDT`	-	`LTOD_TO_LDT`	Data type: DATE
`LDATE_TO_LINT`	`LDT_TO_LINT`	`LTOD_TO_LINT`	Integer
`LDATE_TO_LREAL`	`LDT_TO_LREAL`	`LTOD_TO_LREAL`	REAL, LREAL
`LDATE_TO_LTIME`	`LDT_TO_LTIME`	`LTOD_TO_LTIME`	Data type: DATE
`LDATE_TO_LTOD`	`LDT_TO_LTOD`	-	Data type: DATE
`LDATE_TO_LWORD`	`LDT_TO_LWORD`	`LTOD_TO_LWORD`	Integer
`LDATE_TO_REAL`	`LDT_TO_REAL`	`LTOD_TO_REAL`	REAL, LREAL
`LDATE_TO_SINT`	`LDT_TO_SINT`	`LTOD_TO_SINT`	Integer
`LDATE_TO_STRING`	`LDT_TO_STRING`	`LTOD_TO_STRING`	STRING
`LDATE_TO_TIME`	`LDT_TO_TIME`	`LTOD_TO_TIME`	Data type: DATE
`LDATE_TO_TOD`	`LDT_TO_TOD`	`LTOD_TO_TOD`	Data type: DATE
`LDATE_TO_UDINT`	`LDT_TO_UDINT`	`LTOD_TO_UDINT`	Integer
`LDATE_TO_UINT`	`LDT_TO_UINT`	`LTOD_TO_UINT`	Integer
`LDATE_TO_ULINT`	`LDT_TO_ULINT`	`LTOD_TO_ULINT`	Integer
`LDATE_TO_USINT`	`LDT_TO_USINT`	`LTOD_TO_USINT`	Integer
`LDATE_TO_WORD`	`LDT_TO_WORD`	`LTOD_TO_WORD`	Integer
`LDATE_TO_WSTRING`	`LDT_TO_WSTRING`	`LTOD_TO_WSTRING`	WSTRING

Converting to a string

The operands of type DATE, DATE_AND_TIME, TIME_OF_DAY, DT, or TOD, which are passed to an operator for a data and time conversion, are converted to their constant syntax (literal syntax). The generated string contains the keyword D#, DT# or TOD# and then the size with its data and time unit, as indicated in the IEC 61131-3 standard.

Examples

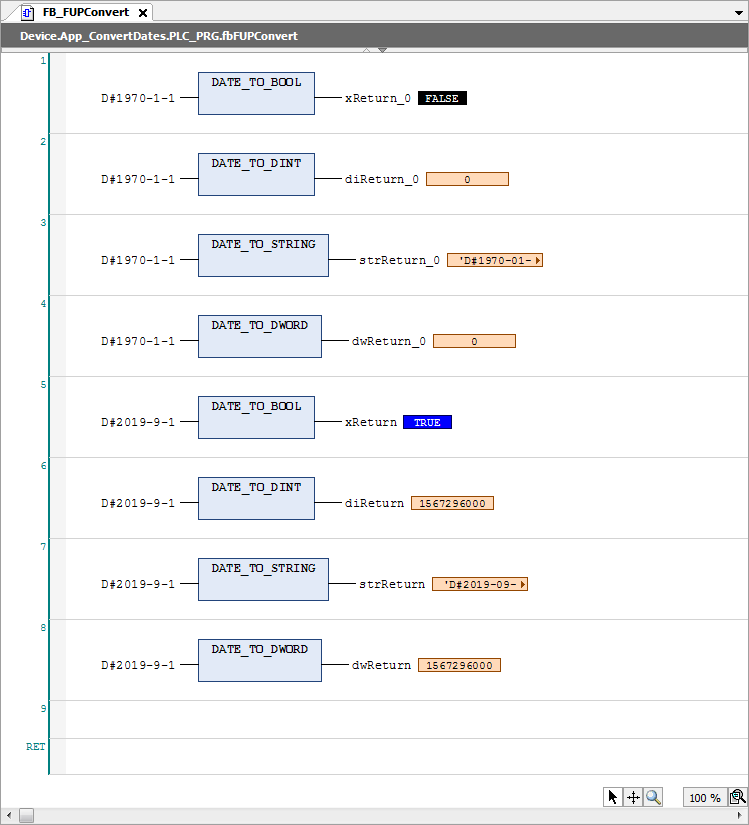

Example 176. FBD implementation language

The controller is in online mode in order to monitor the variables.
