Mapping of OPC UA Types to IEC Types

Mapping of base data types

Table 1. Base data types

OPC UA	IEC	Description
Basic types
`Boolean`	`BOOL`
`Byte`	`BYTE`
`SByte`	`SINT`
`Int16`	`INT`
`UInt16`	`UINT`
`INT32`	`DINT`
`UInt32`	`UDINT`
`Int64`	`LINT`
`UInt64`	`ULINT`
`FLOAT`	`REAL`
`Double`	`LREAL`
`Duration`	`LREAL`
`DateTime`	`LDATEANDTIME`
`UtcTime`	`LTIME`
`String`	`STRING`	Simple strings are converted to IEC strings. The length of the IEC string can be changed afterwards and can be chosen without restriction.
`LocalizedText`	`STRING`	Locatable strings are mapped to an IEC string.
Special types: `NodeId` `Bytestring` `XmlElement` `Guid` `ExpandedNodeId` `StatusCode` `QualifiedName` `LocalizedText` `ExtensionObject` `DataValue` `DiangosticInfo`	Mapping to the corresponding type from the OPC UA specification: `OpcUA_<name>`. Example: `OpcUA_NodeId`	These are data types from the OPC UA specification which require special handling in the PLC application. Only read access is supported.
Inheritance	Inheritance is allowed for all OPC UA types. For example, new types can also be derived from `String` and `Int32`.	Note: In the case of derivations of base types, the base type is used as the basis for the mapping. As a result, the derived OPC UA type is no longer available in IEC.
`BaseObjectType` as data type	See description	If more than one specific object type is allowed for a variable in an information model and it is up to the user of the model to select the specific type, then simply `BaseObjectType` is specified as the type of the variable. Normally, CODESYS generates its own function block in this case and inserts any existing child elements there. However, the user may delete this function block and also use another object type in the declaration. The only restriction is that it has to be an object type from the same information model.

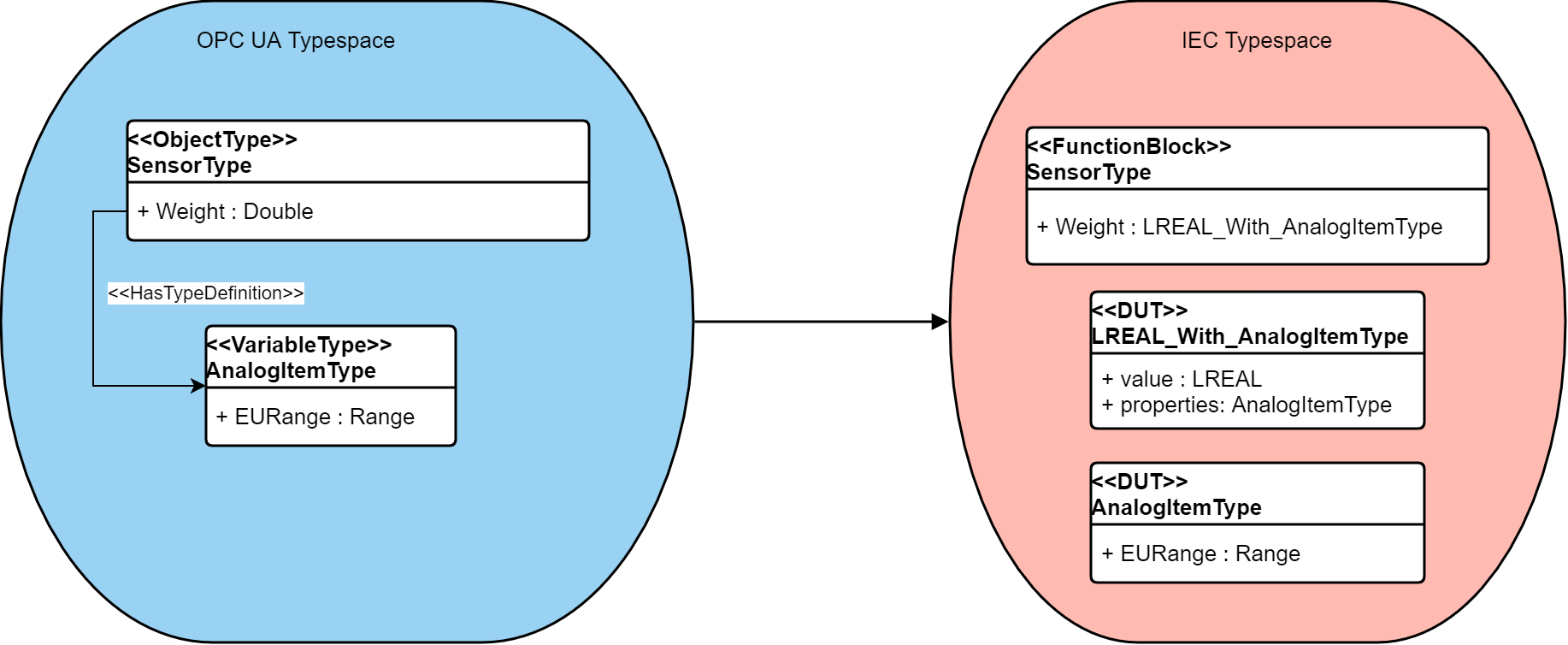

`VariableType`	See description	In addition to a data type, a variable in OPC UA can also reference a `VariableType` by means of a `HasTypeDefinition`. This is often used to decorate a variable with additional metadata (`AnalogItemType`, `EngineeringUnits`, etc.) Because a variable can only ever have exactly one type in IEC, a structure is generated which: Contains a variable named "value " for the actual value of the data type Contains a variable named "properties" which can be used to access the other metadata. For an OPC UA Client, this generated structure is invisible. As expected, it only sees the correct data type at the variable and the metadata as child elements.

Mapping of object types

Tip

All declarations are declared altogether as local variables between VAR and END_VAR. The user can change the declarations as needed in VAR_INPUT and VAR_OUTPUT.

Table 2. Object types

OPC UA	IEC	Description
OPC UA object types	Function blocks

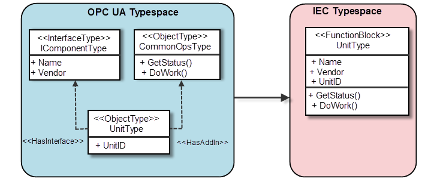

Interfaces and add-ins	Function Block The members of the interface are members of the function block.	Example:

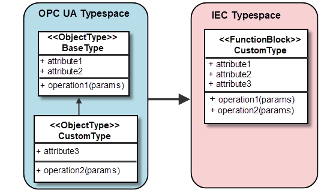

Inheritance	Instead of generating multiple function blocks with "Extends", a flat hierarchy is generated.	Example:

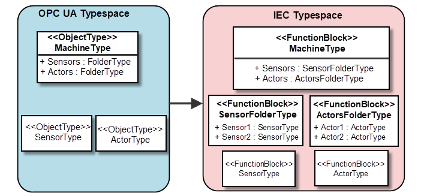

Folder	A separate type for each instance of a folder in an OPC UA object type The user may add the instances on his own by editing the declaration of the IEC POUs. However, function blocks have to be used which originate from an OPC UA companion. All instances of function blocks below the folder are exported. Semantic checks based on NodeSet2.xml are not possible.	Initially, a folder is set as an object type in OPC UA. However, it is not enough to generate a `FolderType`. The user is responsible for adding appropriate elements to the folder.
`BaseObjectType` a as folder	See description (as for folder)	OPC UA defines an individual data type for folders: the `FolderType` (see above: Folder). However, there is also the possibility to declare only `BaseObjectType` in an instance instead of this type and then use this type like a folder. From the OPC UA side, there are no restrictions regarding what is allowed as child elements. The mapping to IEC in this case looks the same as for a `FolderType`.

Mapping of structured data types

Table 3. Structured data types

OPC UA	IEC
Structure	DUT
`Union`	Not currently supported
Optional member	Not currently supported
Inheritance	Implementation as for the object types

Mapping of OPC UA reference types

Table 4. OPC UA reference types

OPC UA	Meaning in OPC UA	Mapping in IEC
`Organizes`		Normally only the derivations of this type are relevant. The exception is when folders are mapped directly to IEC (see Mapping of OPC UA Types to IEC Types).
`HasSubtype`		See Mapping of OPC UA Types to IEC Types
`HasTypeDefinition`		Used to collect all elements of a type when the UA types are compiled according to IEC Declarations of instances in IEC are then referenced again by the OPC UA Server with this reference to the type in the information model. `HasTypeDefinition` for OPC UA variables is currently supported only for the special case when the variable type has the same members as the data type. Then the single access to the individual variables of the DUT instance is allowed in IEC.
`HasComponent`		Variables and objects are mapped in IEC as variables. Therefore, each `HasComponent` reference becomes an variable declaration in IEC. Methods also become methods of the function block in IEC. The user has to apply the modeling rules in the information model editor before the IEC POUs are generated. Optional members can be selected or deselected and concrete members can be generated for placeholders.
`HasProperty`	In OPC UA, properties have the character of additional meta-information for process data. They can be of static nature, for example engineering units. But they can also change when the server is running.	In IEC, this reference is handled exactly like `HasComponent`. As a result, variables are also created for this at the function block. An unresolved issue is the handling of properties at variables in UA (by means of the detour of HasTypeDefinition and VariableType). In IEC, the variable of type `INT` would have to be structured once again and have children. Currently, properties at variables in OPC UA are ignored and cannot be reached from IEC.

For more information, see: Using OPC UA Information Models
