Kin_TGantry2 (FB)¶
- FUNCTION_BLOCK Kin_TGantry2 IMPLEMENTS ISMPositionKinematics_Offset,
ISMPositionKinematicsInternal, ISMKinematicWithInfo2
Transformation FB for a 2-axis T gantry.

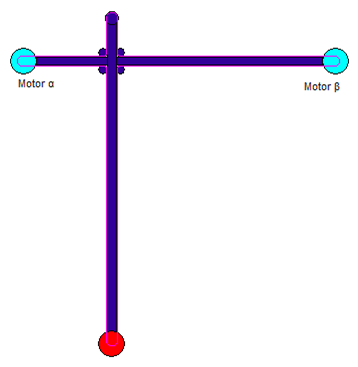

The kinematics configuration is similar to Kin_HGantry2. The drives are mounted stationary and they move the y-axis rail and slider by means of a drive belt on the perimeter of the frame. (see picture aside; belt in pink).
Machine coordinate system (MCS) |
|
|---|---|
Origin |
Location of the TCP when the position values of both axes are 0. |
X |
The X axis is defined so positive velocities of the same amount on both axes, lead to a movement purely along the X axis in positive direction. |
Y |
The Y axis is defined so that a negative velocity on the first axis (a0) and a positive velocity of the same amount on the second axis (a1) leads to a movement purely along the Y axis in positive direction. |
The transformation is adequate for the following axes configuration (other configurations can be reached by interchanging A and B):
The orientation of the tool coordinate system equals the one of the machine coordinate system.
The single axes values have the following interpretation:
a0 |
position of the 1st axis of the machine (A) |
a1 |
position of the 2nd axis of the machine (B) |
- Attributes:
sm_kin_libdoc
Properties:
Methods:
Structure:
