属性:monitoring_encoding

属性 pragma 允许用于数据类型的变量 STRING 对于别名数据类型 type 的变量 STRING。该属性的作用是用它标记变量的值,以便在监视期间以 UTF-8 格式解码。

句法

{attribute 'monitoring_encoding' := 'UTF8'}

插入位置:变量声明上方

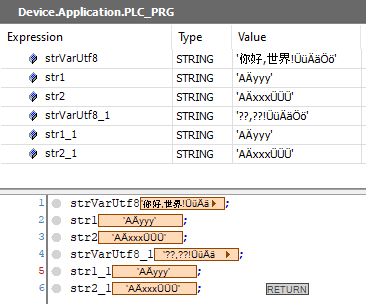

280. 例子
PROGRAM PLC_PRG
VAR
    {attribute 'monitoring.encoding' := 'UTF8'}
    strDat : STRING := 'abc';
    attribute 'monitoring_encoding' := 'UTF-8'}
    strVarUtf8: STRING := UTF8#'你好,世界!ÜüÄäÖö';
    {attribute 'monitoring_encoding' := 'UTF-8'}
    str1: STRING := UTF8#'AÄyyy';
    {attribute 'monitoring_encoding' := 'UTF-8'}
    str2: STRING := UTF8#'AÄxxxÜÜÜ';

    strVarUtf8_1: STRING := '你好,世界!ÜüÄäÖö';
    str1_1: STRING := 'AÄyyy';
    str2_1: STRING := 'AÄxxxÜÜÜ';
END_VAR
