Configuration (FB)¶

FUNCTION_BLOCK PUBLIC FINAL Configuration EXTENDS Component IMPLEMENTS IConfiguration, IGroup, IConfiguration_Internal

This Function Block is used  to represent the Pub/Sub Configuration of an OPC UA Application
See IConfiguration for more details.
If necessary create a RootDiagnostics instance and connect it to itfRootDiagnostics.
It will offer the diagnostic data of an OPC UA Application via the itfDiagnostics output.

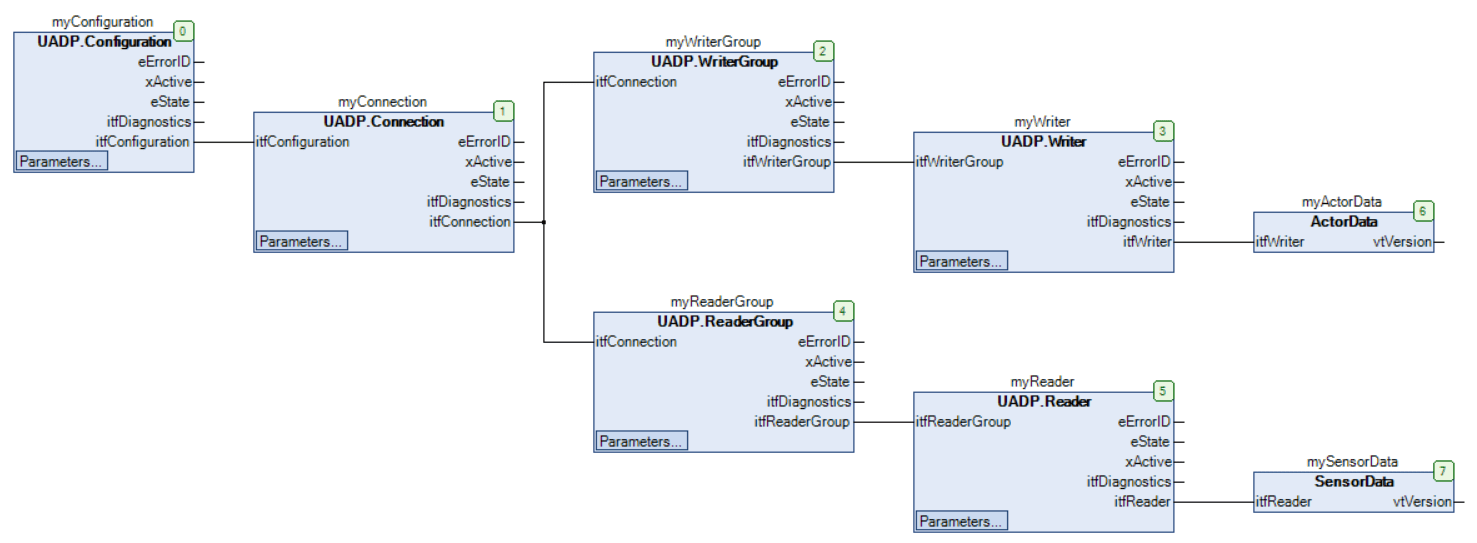

An example of an common configuration:

See: PubSub Configuration Model at OPC Foundation.

InOut:

Scope	Name	Type	Comment	Inherited from
Output	`eErrorID`	ERROR	Reason for STATE.ERROR	Component
	`xActive`	`BOOL`	`True` 🠖 STATE.OPERATIONAL	Component
	`eState`	State	See: State Transition Diagram at STATE	Component
Input Const	`itfRootDiagnostics`	IRootDiagnostics
Output	`itfDiagnostics`	IRootDiagnostics
Output	`itfConfiguration`	IConfiguration

Methods:

SetInitialValue

Structure:

SetInitialValue (Method)
