Outstation (FB)¶

FUNCTION_BLOCK Outstation IMPLEMENTS IOutstation

Function block representing a DNP3 outstation.

An Outstation needs to be configured regarding its

• data model (data points and there type/variation etc.)

• communication (TCP vs. serial)

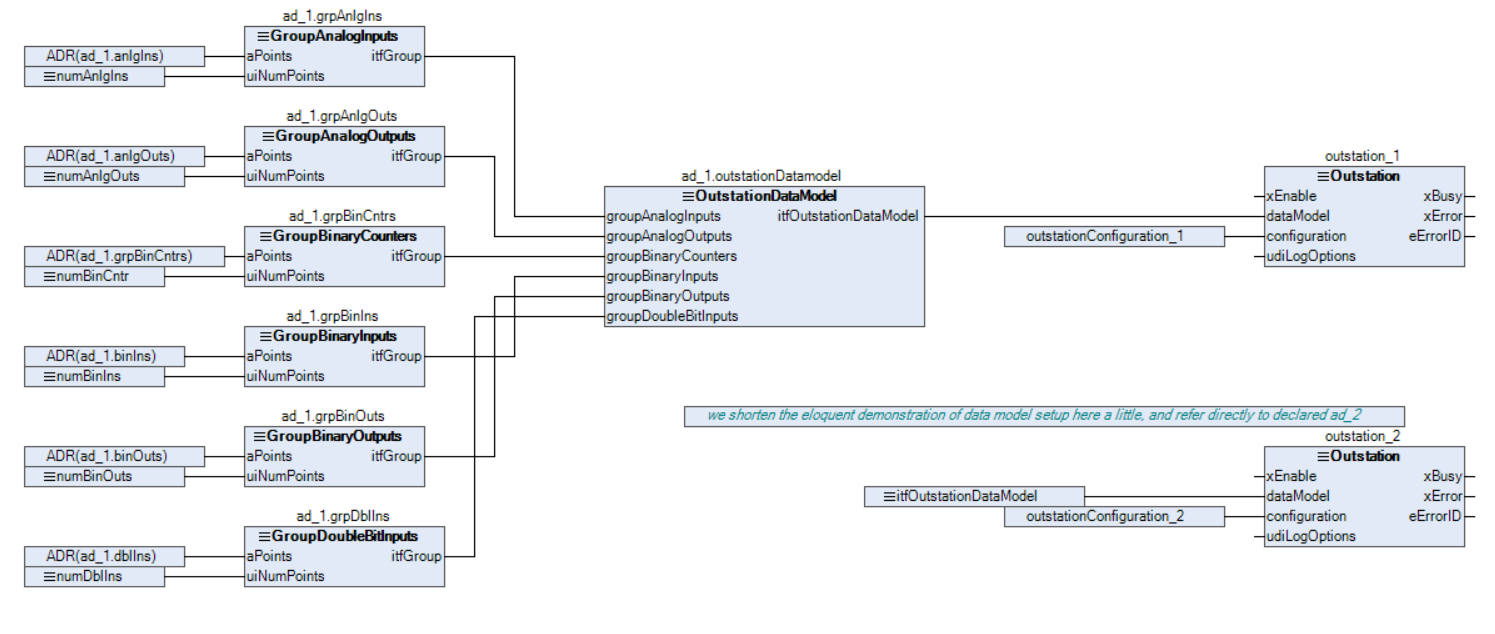

Outstation data points of same type are grouped in a data point group. Data point groups needed for a specific Outstation do specify the OutstationDataModel which is connected to Outstation input dataModel. A specific OutstationConfiguration (actually either OutstationConfigurationIP or OutstationConfigurationCOM) is also connected to Outstation input configuration. If the Outstation is enabled, the dataModel and the configuration is checked for consistency.

InOut:

Scope	Name	Type	Initial	Comment
Input	xEnable	BOOL		Enables the Outstation. The data model and the configuration is checked, in case of errors, xError / eErrorID is set accordingly, otherwise xBusy is set to TRUE
	dataModel	IOutstationDataModel	_nullDataModel	Outstation data model - configuration, no changes accepted if Outstation is enabled
	configuration	IOutstationConfiguration	_nullConfiguration	Outstation configuration - no changes accepted if Outstation is enabled
	udiLogOptions	UDINT	LoggingOptions.None	LoggingOptions can be combined using OR
Output	xBusy	BOOL		The Outstation is operational.
	xError	BOOL		An error occured.
	eErrorID	Error		The specific error.

Properties:

Name

Methods:

IdToString

Structure:
