General

A Sercos network in equipped with a master, which is responsible for the coordination in the network, and at least one slave. Slaves can be set up modularly.

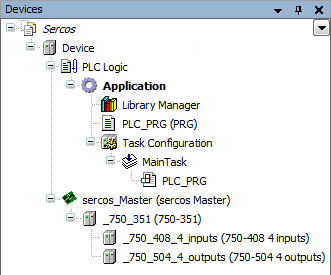

You add the Sercos Master directly below the PLC. You add the slaves and modules below the master. To do this, you first have to install the device description files in the device repository. The device description files, Sercos III XML (*.xml), are provided with the hardware. The library IODrvSERCOS3 is added automatically to the Library Manager when you insert a Sercos Master into the project.
