Starting Scripts from the Command Line

Requirement: A valid Python script file <file name>.py is located in the file system.

Create a CMD file with the command start, the CODESYS starts,
And with the option --runscript that calls the script file.
Further options are possible, for example --noUI, if the CODESYSuser interface should not be opened.
Open the Windows window Command prompt and start the CMD file.

You can pass arguments with additional information to the script. Python scripts can access arguments with the sys.argv[] list. The first element (Index 0) is always the name or path of the Python script that is executed, followed by the "actual" parameters. (This is similar to argc/argv in C.)

In addition, scripts can also access environment variables that are set before CODESYS is started with the corresponding Python or .NET APIs.

Example 1. Example

You have a CMD file (batch file) argvtestbat.cmd with the following content (all on one line).

"C:\Program Files (x86)\CODESYS 3.5.17.0\CODESYS\Common\CODESYS.exe" --profile="CODESYS V3.5 SP17" --runscript="D:\Dokumente\Scripting\ArgvTestScript.py" --scriptargs:'username password 3.14 "path=\"C:\temp\\\""' --noUI

You have a matching script file ArgvTestScript.py.

from __future__ import print_function

import sys
print("sys.argv: ",
   len(sys.argv),
   " elements:")

for arg in sys.argv:
    print(" - ", arg)

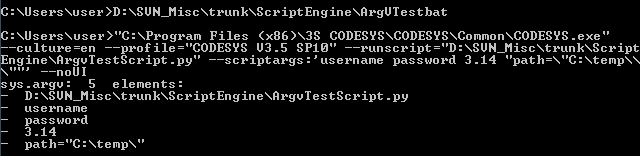

Now when you execute the CMD file, CODESYS starts and executes the script without opening the CODESYS main window. Then CODESYS is exited:

For a complete reference of all possible command line parameters, see the help page for the command-line interface in CODESYS in the section for "--runscript".

For more information see: Command line interface, option --runscript

For information about the Python API, see: https://docs.python.org/2/library/os.html#process-parameters

For information about the .NET API, see: https://msdn.microsoft.com/de-de/library/77zkk0b6%28v=vs.110%29.aspx
