Object: Recipe Definition

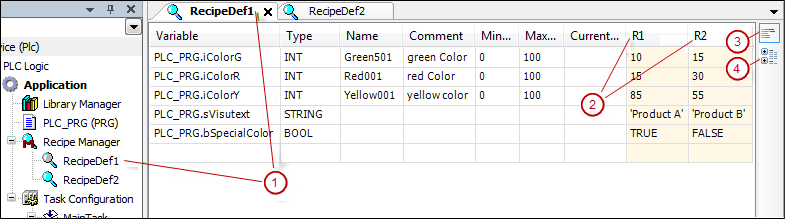

In the recipe definition (1), you define different data sets for the variables, which are called recipes (2).
For more information, see: Using Recipes to Set Values
You can toggle the display of the recipe definition between the flat list view (3) and the structured display (4). In the structured display, CODESYS groups variables according to structure.
Type | Entered automatically |
Name | Optional |
Minimum value Maximum value | If the variable value is less than the Minimal Value or greater than the Maximal Value, then CODESYS sets the value to the Minimal Value or Maximal Value. |
Comment | Additional information, for example the unit of the value |
Current value | Current variable value; not shown in online mode |
Add Sibling | Adds a sibling variable to the recipe definition |
Add Child | Adds a child variable to the recipe definition |
